A guide to linear handle locks
Linear door handles and other linear handle designs are often used on cabinets and enclosures that need frequent access without compromising security. These handle locks feel intuitive to operate, take up little space, and fit neatly alongside other types of door handle locks used in industrial settings. This guide examines their purpose, behaviour, and practical use in detail, covering:
What is a linear handle lock?
How linear handle locks work
Types of linear handle locks
Common applications
Benefits of linear handle locks
How to install a linear handle lock
Conclusion and expert resources
What is a linear handle lock?
A linear handle lock is a locking mechanism integrated into a handle. In this design, both the actuation and the locking movement occur in a straight, linear path rather than through rotation. Instead of turning a knob or key cylinder, the user operates a sliding or push–pull component of the handle to engage or disengage the lock. This distinguishes it from other types of door handle locks commonly found on industrial enclosures.
Our experts explain more, including the difference in locks and latches, in The complete guide to locks and latches.
Browse our range of latches and locks
How linear handle locks work
A linear handle lock operates by converting a straight-line hand motion—such as sliding or pushing a part of the handle—into a straight-line movement of an internal bolt or latch. There is no rotational action involved, unlike many standard door handle locks.
1. User actuation
The user moves a portion of the handle forward, backward, up, or down along a guided track. This part is often a thumb slide, recessed slider, or push-pull section built into the handle body. Some designs may resemble a compact linear pull handle.
2. Guided linear motion
Inside the handle, that motion is constrained by a channel or rail that forces the actuator to travel in a fixed straight path. This ensures predictable alignment with the locking components and supports reliable operation in environments where handle locks are used frequently.
3. Bolt or latch movement
The actuator is mechanically linked to a linear bolt (a metal bar or latch). As the actuator moves, it drives the bolt into or out of its receiving point, such as a strike plate, slot, or housing recess.
4. Locking position
When the bolt reaches its end of travel, the mechanism holds it in place using:
● spring detents,
● friction-fit interference, or
● a click-stop position machined into the track.
This prevents drift or accidental unlocking from vibration or light force.
5. Optional key or tool control
Some designs include a key cylinder or tool slot. Turning the key does not move the bolt; instead, it locks or unlocks the sliding actuator itself, preventing it from moving until authorised.
6. Unlocking
To unlock, the user slides or pulls the actuator back along the same linear path. This retracts the bolt and frees the door, panel, or component.
Types of linear handle locks
There are several types of door handle locks, and linear models form a specific category defined by the way the handle’s sliding motion drives the internal latch or bolt.

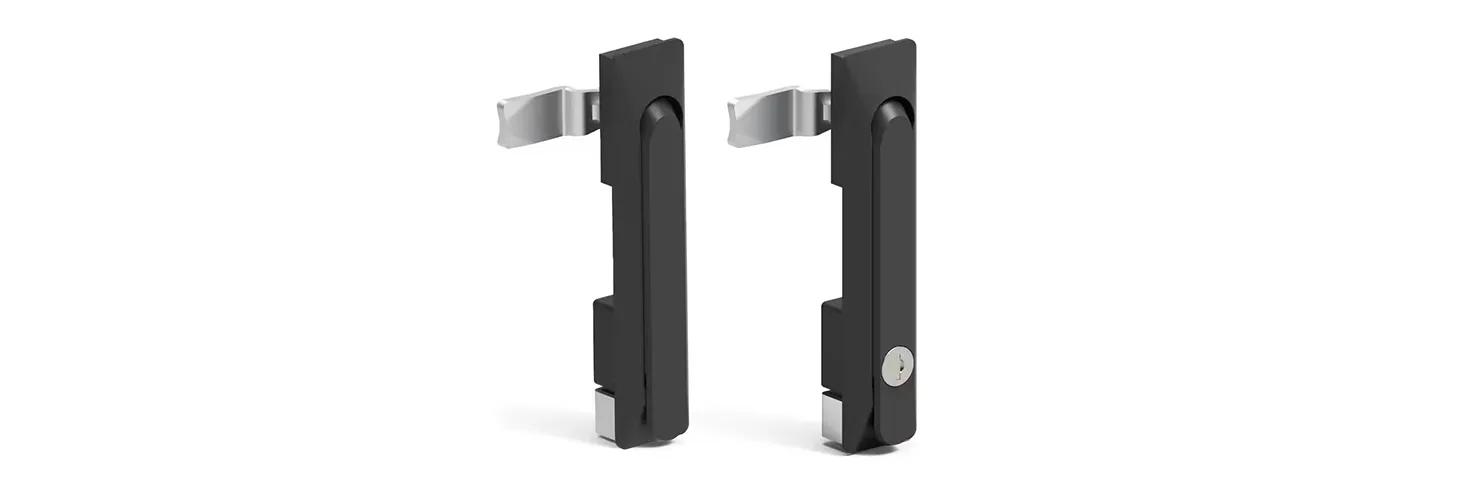

Swing handle locks
A form of pivoting handle designed to secure and release doors, panels, and other access points.
The swing-handle locks in our range suit typical cabinet and enclosure dimensions, and many versions allow for more than one locking point.
These locks are widely used in industrial and construction settings, where cabinet doors need to be opened and closed quickly while still providing reliable security. Key locking and padlocking options. Zinc alloy and polyamide in different finishes.
Mini swing handle locks
These compact swing handles are built for smaller cabinets and enclosures where only one locking point is needed. Their smaller form factor helps save space on crowded panels, and they’re available in a choice of finishes with either an oval or rectangular handle shape.
These smaller swing handles are well suited to industrial and construction environments where cabinet doors need to be opened and closed quickly and conveniently. Die cast zinc alloy, zamak & nylon.

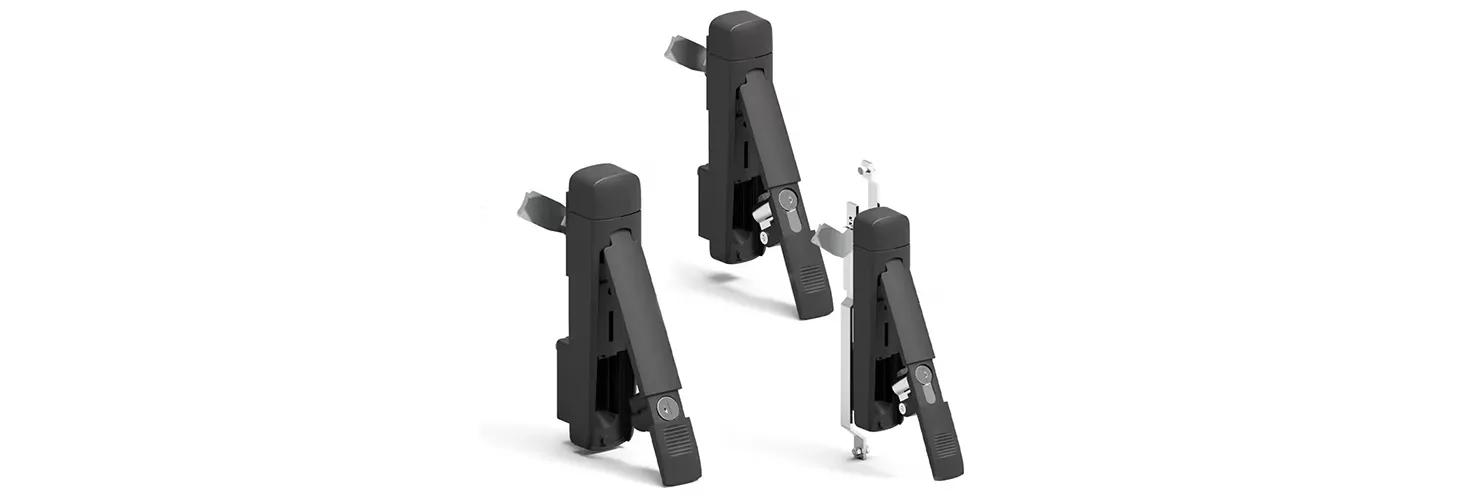

Linear handle latches
Linear handle latches are designed to keep doors, panels, and enclosures firmly closed while allowing quick, efficient operation. They rely on a straight-line actuation system in which the handle slides to engage or release the latch, creating a reliable and stable connection.
In multi-point setups, the linear handle can drive connecting rods and related hardware, allowing the lock to secure several points along the door edge. These systems are typically engineered to withstand heavy use and resist corrosion or environmental exposure.
The movable lever version mounts into a standard panel cutout and uses a short up-and-down movement—about 70°—to open or close the access point with minimal effort.
Common applications
The table below outlines the key industries and the applications where linear handle locks are most commonly installed.
|
Industry |
Typical applications |
|
Industrial equipment |
Machine covers, access panels, inspection doors, control cabinets |
|
Electrical & electronics |
Switchgear enclosures, distribution boards, server cabinets, rack systems |
|
Construction & building services |
HVAC housings, utility cabinets, meter boxes, plant-room access points |
|
Transportation |
Vehicle service panels, cargo compartments, rail equipment housings |
|
Telecommunications |
Outdoor telecom cabinets, network enclosures, base-station housings |
|
Manufacturing |
Safety guards, production-line enclosures, equipment access doors |
|
Energy & utilities |
Power distribution units, renewable energy inverter cabinets, substation enclosures |
|
Laboratory & technical environments |
Instrument housings, analytical equipment panels, containment enclosures |
You might also find it helpful to explore other handles in our guide, Types of levers and handles in industrial machinery.
Benefits of linear handle locks
Linear handle locks bring a number of practical advantages to equipment and enclosure design, helping improve ease of use, long-term durability, and overall security wherever controlled access is needed.
Straight-line operation
Their linear actuation provides smooth, predictable movement, making them easy to operate with minimal effort. This reliable feel is one of the reasons they’re preferred over other types of door handle locks in technical environments.
Secure and stable engagement
The direct, in-line motion of the bolt or latch creates a firm, reliable locking action with less mechanical play.
Compact, low-profile design
As the mechanism operates along a straight path, it can be built into slim handles that suit tight or shallow spaces.
Consistent performance under load
Linear mechanisms distribute force evenly along the locking path, reducing stress concentrations and improving durability.
Compatibility with single- or multi-point locking
Many designs can connect to rods or linkages, allowing the same handle to control multiple locking points along a door edge.
Reduced wear and mechanical complexity
The simplified motion path means fewer rotational components, which can lower wear rates and extend service life.
Ease of installation and maintenance
Their straightforward internal layout often makes fitting, adjusting, and servicing simpler compared to more intricate rotational systems.
How to install a linear handle lock
Here, we’re looking at our own linear handle latch to explain installation.

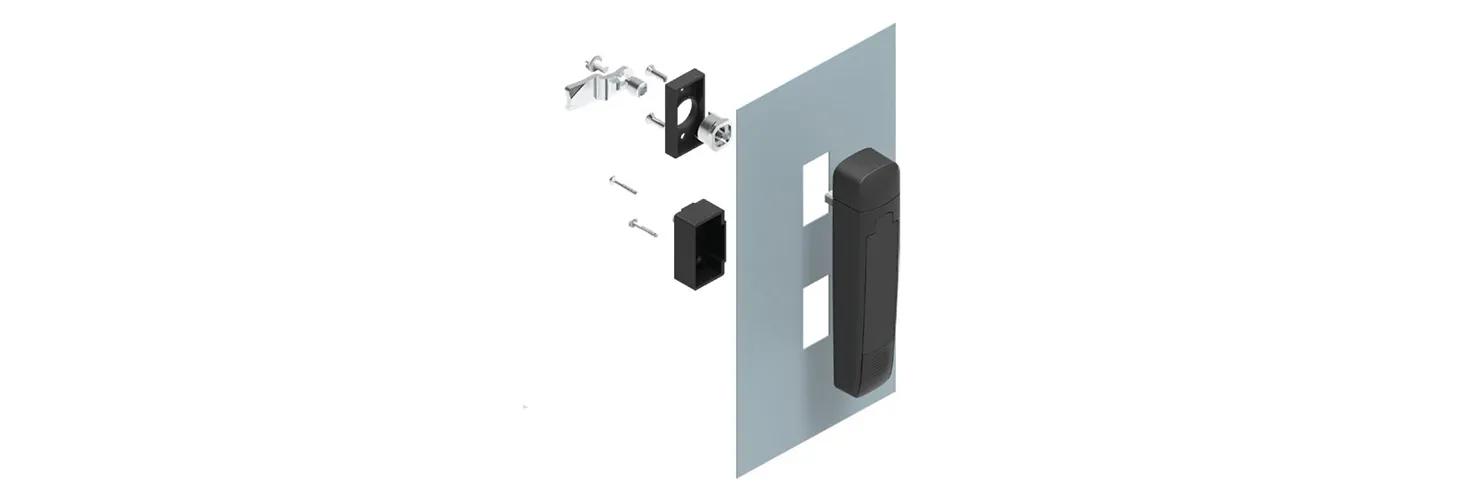

1. Prepare the panel cut-out
Check the product’s technical drawing or specification sheet to identify the required cut-out dimensions and panel thickness range. Mark these dimensions onto the door or enclosure panel, ensuring correct orientation for the handle.
Create the opening following the marked outline, then remove any sharp edges so the lock body can sit securely and flush when inserted.
2. Insert the lock body from the front
The lock assembly is pushed through the cut-out from the outside face of the cabinet or enclosure door.
The long body must sit flush so that the handle sits vertically in its resting position.
3. Position the interior components
Once the body is seated, the internal fixing bracket or nut is placed on the inside of the panel. This secures the lock body in place before attaching cams or rods used in larger door handle locks.
4. Fit the cam or rod mechanism
The cam attaches directly to the rear spindle of the handle.
If multi-point locking is required, rods and rod adapters (referenced in the catalogue) connect to the same rear mechanism. The handle’s 70° vertical swing range then drives the cam or rods to lock or unlock the enclosure.
5. Install the dust cover and/or padlock feature (if used)
The product includes a sliding dust cover on the front face, and optional padlock accommodation is shown in the lower left of the page.
If the padlock feature is ordered (by adding “1” to the code), the front plate includes a small hinged loop for the padlock.
6. Tighten fixings and check handle movement
After securing the rear hardware, tighten all screws or nuts evenly.
Swing the handle through its 70° arc to ensure smooth motion and that the cam fully engages the strike or locking point.
7. Test final operation
Close the door and operate the handle again to ensure the lock aligns correctly and the latch holds the enclosure securely.
If the cam does not meet its strike cleanly, adjust the cam position or rod lengths.
Conclusion and expert resources
Linear handle locks offer a dependable way to secure doors, panels, and enclosures, whether the application is straightforward or more demanding. Their direct motion keeps operation smooth and easy, and the mechanism is built to stay consistent even with repeated use. They fit comfortably into industrial, electrical, construction, and technical environments, adapting to a wide range of enclosure sizes and mounting setups while maintaining the required level of security.
Expert resources
Door & Hardware Federation (DHF) — DHF releases new Code of Practice (DHF TS 012) for industrial door sector. Provides a thorough framework for door hardware, including locking devices.
University College London (UCL) Estates — Locking & Door Ironmongery Technical Specification & Design Guidance v2.0 covers standards used at UCL for lock cases, bolts, cylinders and hardware performance.
The Guild of Architectural Ironmongers (GAI) Specifiers Guide — covers security, hardware specification and industry standards.
