A guide to wire saddles
In any high-performance system, whether electrical, electronic, optical, or data-driven, cable stability is critical. Wire saddles provide a reliable solution for securing and organising cables within control cabinets, equipment enclosures, and built environments. With multiple mounting styles, they help ensure safe, efficient operation by supporting clean layouts, minimising wear, and maintaining signal integrity. In this guide, we’ll cover:
What are wire saddles?
Uses and applications for wire saddles
Types of wire & cable saddles
Mounting options
Wire saddle installation
What are wire saddles?
Wire saddles are essential components used to hold and route cables in place. By keeping wiring orderly and secure, they reduce wear from vibration, prevent tangling, and make future access easier.
Just as importantly, they play a critical role in system performance by allowing different types of cables to be grouped together, or kept apart, based on the signals they carry. These may include:
● Power (AC and DC)
● High-voltage and low-voltage lines
● Signal cables (analogue and digital)
● Data cables (electric)
● Optical fiber
● Coaxial
● Twisted pair
Each type carries signals with different levels of sensitivity to electromagnetic interference (EMI) or inductive noise. Wire saddles help maintain signal integrity by ensuring that cables are routed in a way that minimises interference and avoids cross-talk. This promotes clean system operation, free from signal artifacts, and reduces the risk of failure.
Typically mounted to flat surfaces like panels, walls, or chassis, wire saddles act as small brackets or clips that support one or more wires. They’re often used alongside other cable management tools, such as zip ties, clamps, or adhesive mounts, to keep everything in place and running smoothly.
Browse our range of wire saddles
Cable clips are similar to wire saddles, but differ in design and functionality. Our experts explain more in What are wire clips and how to use them.
Uses and applications for wire saddles
Wire saddles are widely used across industries where secure, organised cable routing is essential for performance, safety, and maintenance. Their role extends far beyond basic cable management. They support system integrity in environments where signal clarity, heat control, and vibration resistance matter most.
1. Energy transformation
Wire saddles are used in equipment related to renewable power generation, grid infrastructure, and electric vehicle charging. By keeping power and signal cables properly routed and separated, they help reduce interference, improve safety, and ensure compliance with evolving energy standards.
2. Specialist vehicles
From emergency response units and military platforms to agricultural and construction machinery, wire saddles play a critical role in managing complex wiring harnesses. They protect cables from vibration, prevent disconnections, and make sure systems remain accessible in demanding mobile environments.
3. Data infrastructure
Wire saddles help manage dense cabling in data centres, network enclosures, and IT installations. They improve airflow, prevent clutter, and support high-performance data routing. This makes maintenance easier, reducing the risk of downtime caused by cable damage or signal interference.
4. Machine automation
In industrial automation systems, control panels, and production equipment, wire saddles organise power and signal cabling. The result is safer operation, reduced cable wear, and improved fault isolation. They contribute to clean, modular layouts that simplify repairs and upgrades.
5. Defence
Subject to stricter regulations and often requiring specialised components, defence systems also rely on wire saddles to manage internal cabling. Applications include ground-based systems, communications infrastructure, and support vehicles, where secure, reliable cable routing is essential.
Good cable management goes a long way. You can learn more from our experts in How to protect cables.
Types of wire & cable saddles
Wire and cable saddles come in a wide range of styles to suit different applications, cable types, and installation environments. From compact, non-locking designs to heavy-duty locking variants, each type offers specific benefits for managing cables efficiently and safely. The material, size, and mounting method all play a role in performance.
Choosing the right saddle depends on:
● The type of cable
● Whether shielding or separation is needed
● Whether cables need regular access or permanent fixing
Cable clamps – plug-In, round wire saddle
Designed for quick, reliable cable management, this cable saddle clamp features a fir tree mount for secure, tool-free installation into pre-drilled holes. Made from durable nylon 6/6, it offers excellent resistance to wear, chemicals, and heat. The open, non-locking design allows for easy removal and replacement of wires. Ideal for setups that need flexibility or frequent maintenance.
Browse our range of cable clamps – plug-In, round wire saddle

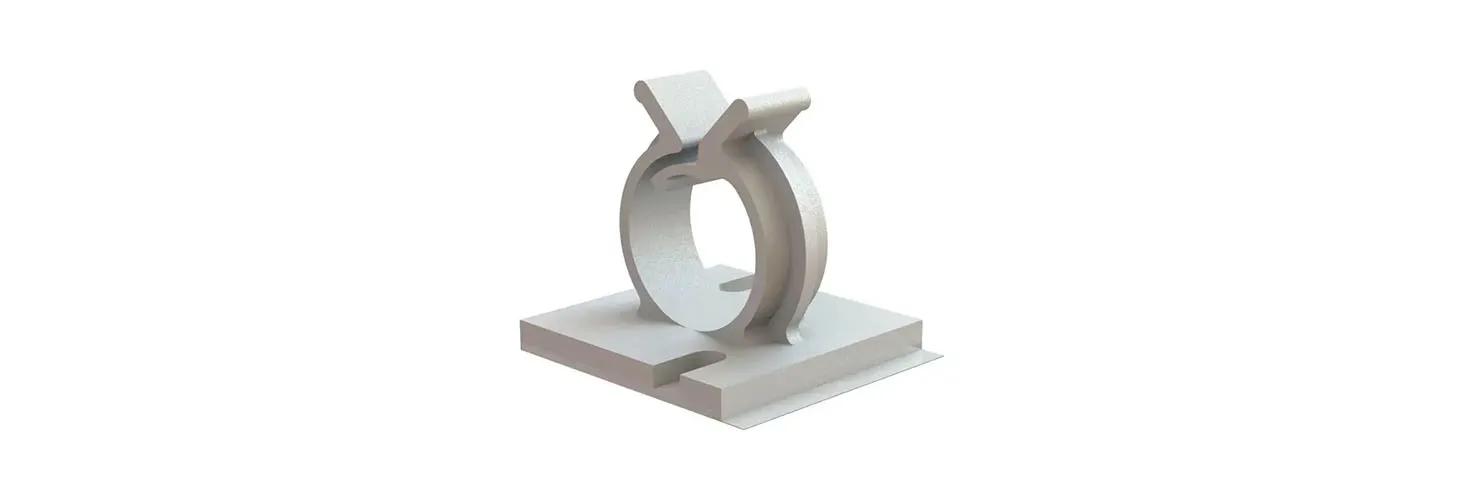

Adhesive/screw mount wire saddle
Rounded wire saddles are designed to allow wires and cables to slide in smoothly, offering a simple way to guide and manage them without requiring a locking feature. Available in two mounting options: a screw base or a high-quality self-adhesive backing. The adhesive version uses a durable tape that ensures strong and reliable attachment.
Thanks to their circular design, these saddles are compatible with a broad range of cable diameters, providing flexibility for different wiring needs. Nylon or nylon 6/6 with UL94 V0 and UL94 V2 flame rated options. Temperature Range: -40C up to 85C.

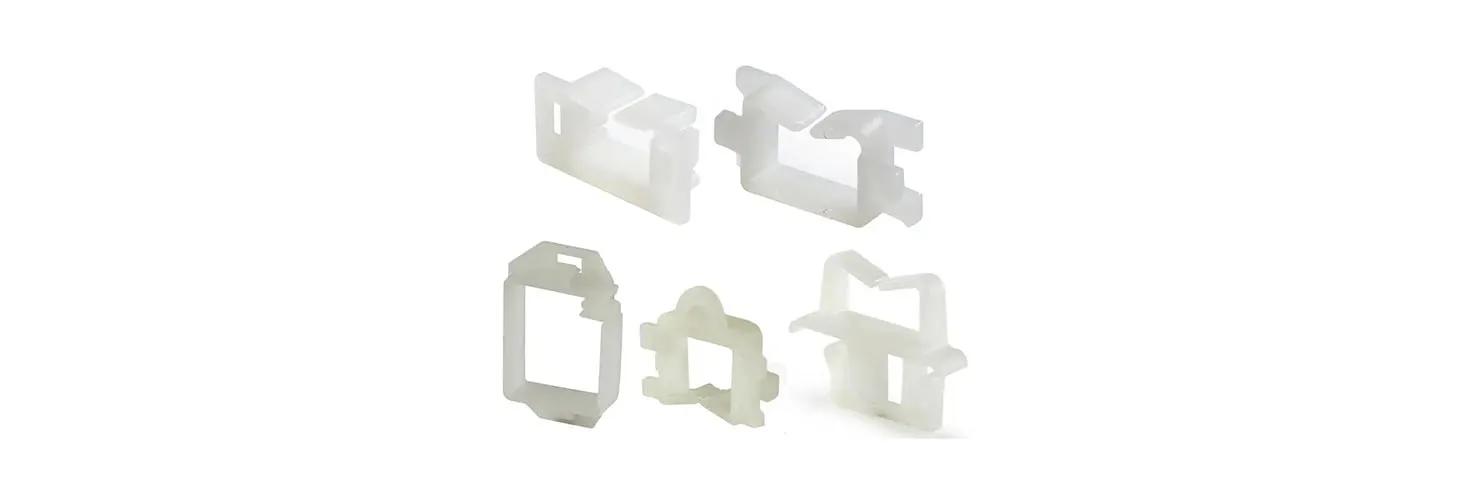

Edge wire saddles
Convenient solution for securing wires and cables along panel edges or within cut-out sections. Featuring a top-entry locking design, they keep cables securely in place while ensuring clearance from delicate components. When needed, the cables can be detached easily, and the saddle itself can be installed or removed with light finger pressure—no tools required. Nylon or nylon 6/6 with UL94 V0 and UL94 V2 flame rated options. Temperature Range: -40C up to 85C.
Hinged locking wire saddle
Hinged wire saddles offer a simple and efficient way to organise and route cables, keeping them securely arranged.
Their hinged top-entry locking mechanism ensures cables stay firmly in place and away from critical components. When access is needed, the cables can be released effortlessly, and the saddle itself can be attached or detached using only light finger pressure. No tools necessary. Nylon or nylon 6/6 with UL94 V0 and UL94 V2 flame rated options. Temperature Range: -40C up to 85C.
Locking wire saddles
Locking cable saddle offers a fast and effective way to bundle, guide, and secure wires and cables in an orderly manner. Top-entry locking design keeps cables firmly held while maintaining clearance from nearby sensitive components. When needed, cables can be quickly removed, and the saddle itself can be installed or detached effortlessly with just fingertip pressure. Nylon or nylon 6/6 with UL94 V0 and UL94 V2 flame rated options. Temperature Range: -40C up to 85C.

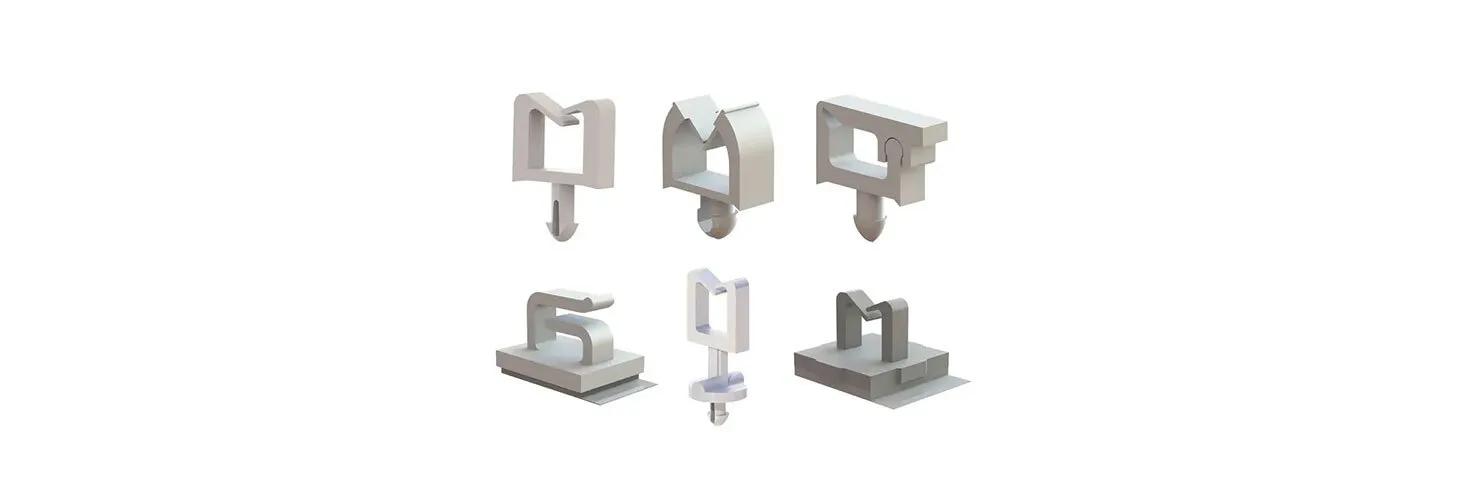

Mini wire saddles
Designed to organise and guide cables in electronic setups, helping maintain a clean workspace and minimizing cable clutter. They also allow for easy cable access during assembly, maintenance, or repairs.
This range includes both locking and non-locking designs, adhesive-backed versions, and variations such as side-entry, blind-hole, and stand-off styles. Mounting configurations include push-fit and screw-on options. Their compact size makes them ideal for installations where available space is limited. Nylon 6/6. Rated UL94 V-0 and UL94 V-2.
Browse our range of wire saddles – non-locking, snap-in, square hole mount
Non-locking wire saddle
This non-locking cable saddle is designed to organise and guide cables, keeping them safely away from sharp or delicate components. It helps maintain a clean and uncluttered layout, making it well-suited for electronic applications.
The range includes various styles with different mounting options, including versions with smooth, rounded edges to reduce strain on fiber as it enters the assembly. Side-entry designs are available for applications with limited vertical clearance, along with options for blind-hole and adhesive mounting to suit different installation needs. Nylon 6/6 with UL94 HB, UL94 V0 and UL94 V2 flame rated options.
Mounting options
Wire saddles come in different mounting styles to suit different surfaces, environments, and installation needs. Choosing the right cable saddle mount ensures secure placement, long-term durability, and ease of maintenance.
Mounting style plays a role in how cables are isolated, spaced, and supported to avoid electromagnetic induction, physical stress, or overheating.
Fir-tree mount
This fastener features flexible barbs that grip the sides of a pre-drilled hole, making it easy to push in and secure without tools. Fir-tree mounts offer a strong hold and are commonly used in automotive and panel applications.
Snap-in mount
Snap-in wire saddles are designed to fit quickly into pre-formed holes, locking into place with minimal effort. They’re ideal for applications where speed and convenience are key, and are often used in electrical enclosures and equipment housings.
Screw mount
These cable tie saddle mounts are secured with screws, providing maximum strength and stability, especially in environments with vibration or heavy cable loads. Screw mounts are a go-to for permanent or semi-permanent installations.
Adhesive mount
Adhesive-backed wire saddles are perfect for smooth, flat surfaces where drilling isn’t possible or desired. They’re easy to apply, and the adhesive provides a firm hold for lightweight cables. Note that adhesive mounts have a limited shelf life and are best stored in cool, dry conditions.
Cable clips are also available with adhesive backing. You can learn more in the guide our experts have put together, Different Types of Adhesive Cable Clamps and Their Unique Benefits.
Side mount
Ideal for space-constrained areas, side-mount wire saddles allow cables to be routed from the side rather than the top. This option is especially useful in tight enclosures or behind equipment where access is limited.
Plug-in mount
Plug-in styles are pushed into pre-drilled holes or slots, offering a fast, tool-free installation similar to snap-in and fir tree mounts. They are a reliable choice for standard panel routing.
Edge mount
Edge mount saddles clip onto the edge of a panel or into panel cut-outs, eliminating the need for holes or adhesives. These are great for quick installs and are typically used when routing wires along the borders of panels or doors.
Wire saddle installation
Installing electrical cable saddles is a straightforward process. Doing it properly ensures long-term cable stability, safety, and a clean, professional finish. Depending on the mounting style, the cable saddle clamp installation may vary slightly, but the core steps remain similar across most applications.
Correct installation also supports proper wire grouping and shielding, helping prevent EMI and reducing signal noise or risk of failure.
1. Plan your cable route
Before installing any cable saddles, map out where your cables will run. Consider:
● Signal type and EMI sensitivity (keep power and signal cables apart)
● The number of cables being routed
● Proximity to moving parts, heat sources, or sharp edges
● The need for future access or adjustments
Spacing your saddles evenly along the route will help reduce sag and prevent stress on the wires.
2. Select the right saddle and mount type
Choose a wire saddle that matches your cable bundle size and environment. For example:
● Use adhesive mounts for smooth surfaces and light loads
● Use fir tree or snap-in mounts for pre-drilled holes
● Use screw mounts where maximum strength is needed
● Choose side-entry or edge mounts where cable segregation is required or space is limited
3. Prepare the surface or mounting point
● For adhesive mounts: Clean the surface thoroughly with isopropyl alcohol and allow it to dry. Avoid touching the adhesive pad before installation.
● For hole-based mounts: Ensure that holes are the correct diameter and free from debris.
● For edge or plug-in mounts: Check that the panel edge or cut-out matches the saddle specifications.
4. Install the wire saddle
● Push-in (fir tree, snap-In, plug-in): Insert the base into the hole and press firmly until it clicks or seats securely.
● Adhesive: Peel off the backing and press the saddle onto the surface, holding it in place for a few seconds to ensure good adhesion.
● Screw mount: Align the saddle with the pre-drilled hole and fasten it using the appropriate screw type.
● Edge mount: Clip the saddle onto the edge of the panel or into a cut-out using firm finger pressure.
5. Route and secure the wires
Once the saddles are in place:
● Gently lay the cables into the saddles
● Use additional cable ties if needed for larger bundles
● For locking styles, close the top lid or hinge to secure the wires
● For non-locking styles, wires can be easily removed or repositioned as needed
When handling mixed cable types, ensure that cable pathways minimise interference and follow standard segregation practices.
6. Test and inspect
Double-check that:
● All cables are seated securely
● No wires are under tension or being pinched
● All saddles are firmly mounted and aligned properly
A careful installation now will reduce the need for adjustments or repairs later, and help keep your cable runs safe and organised.
