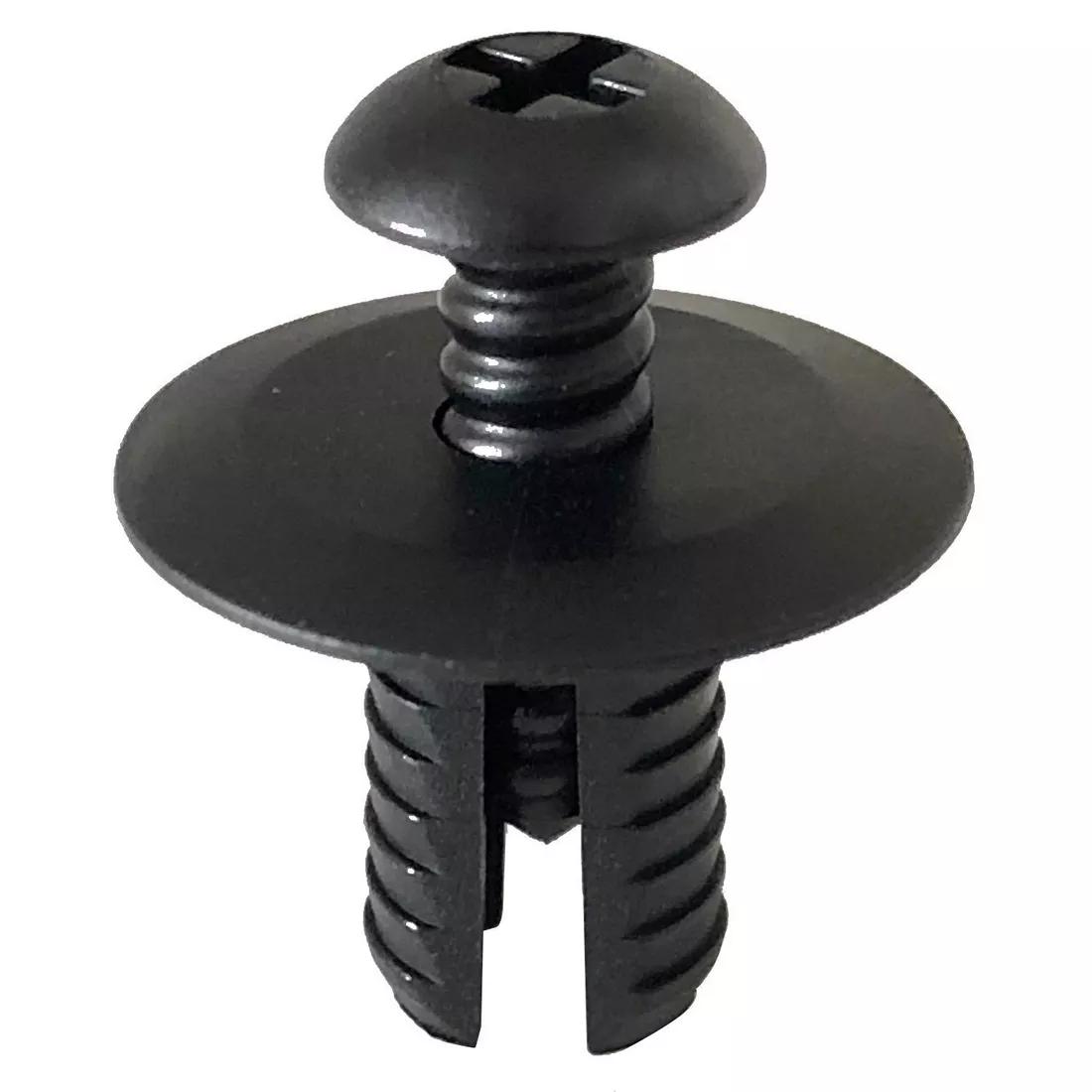

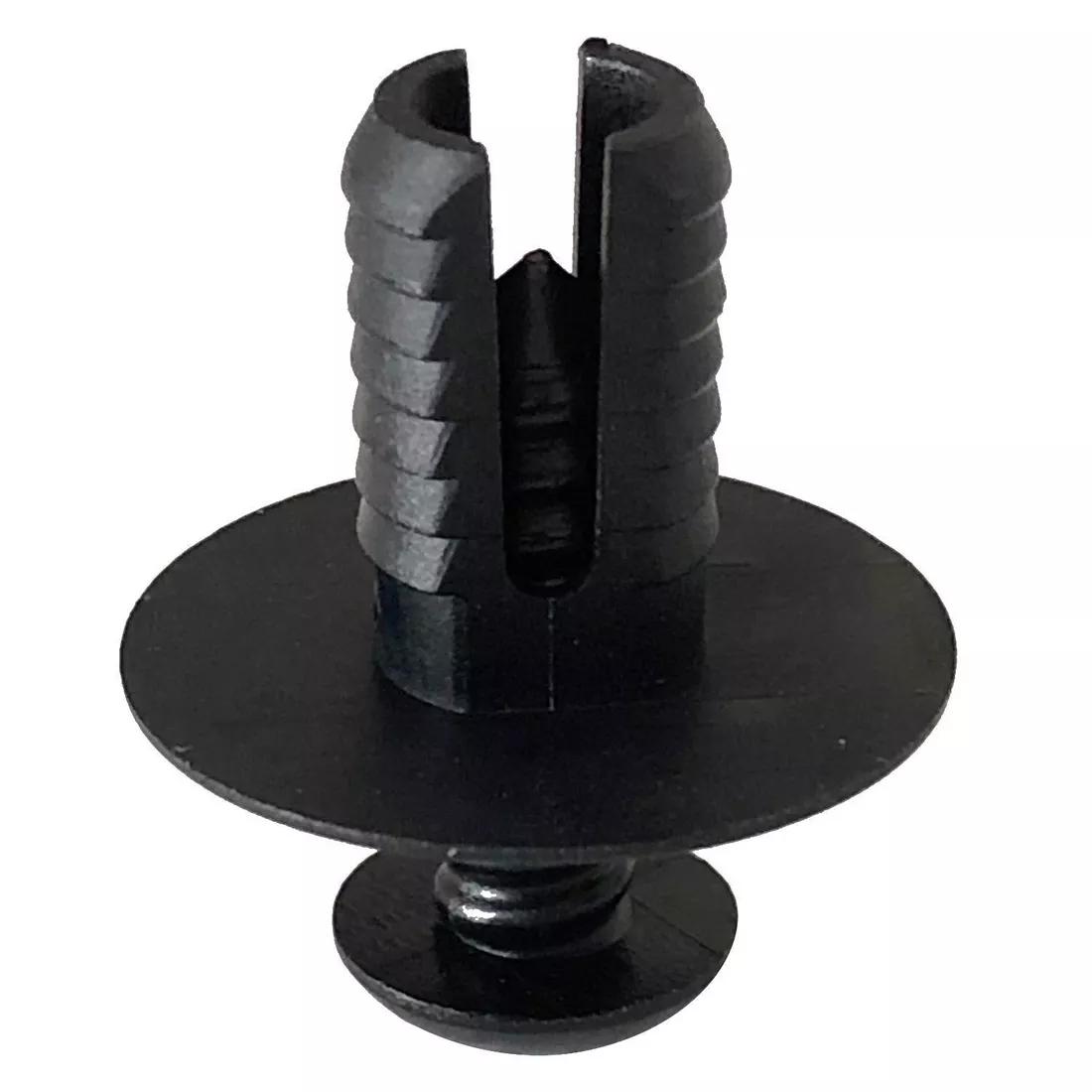

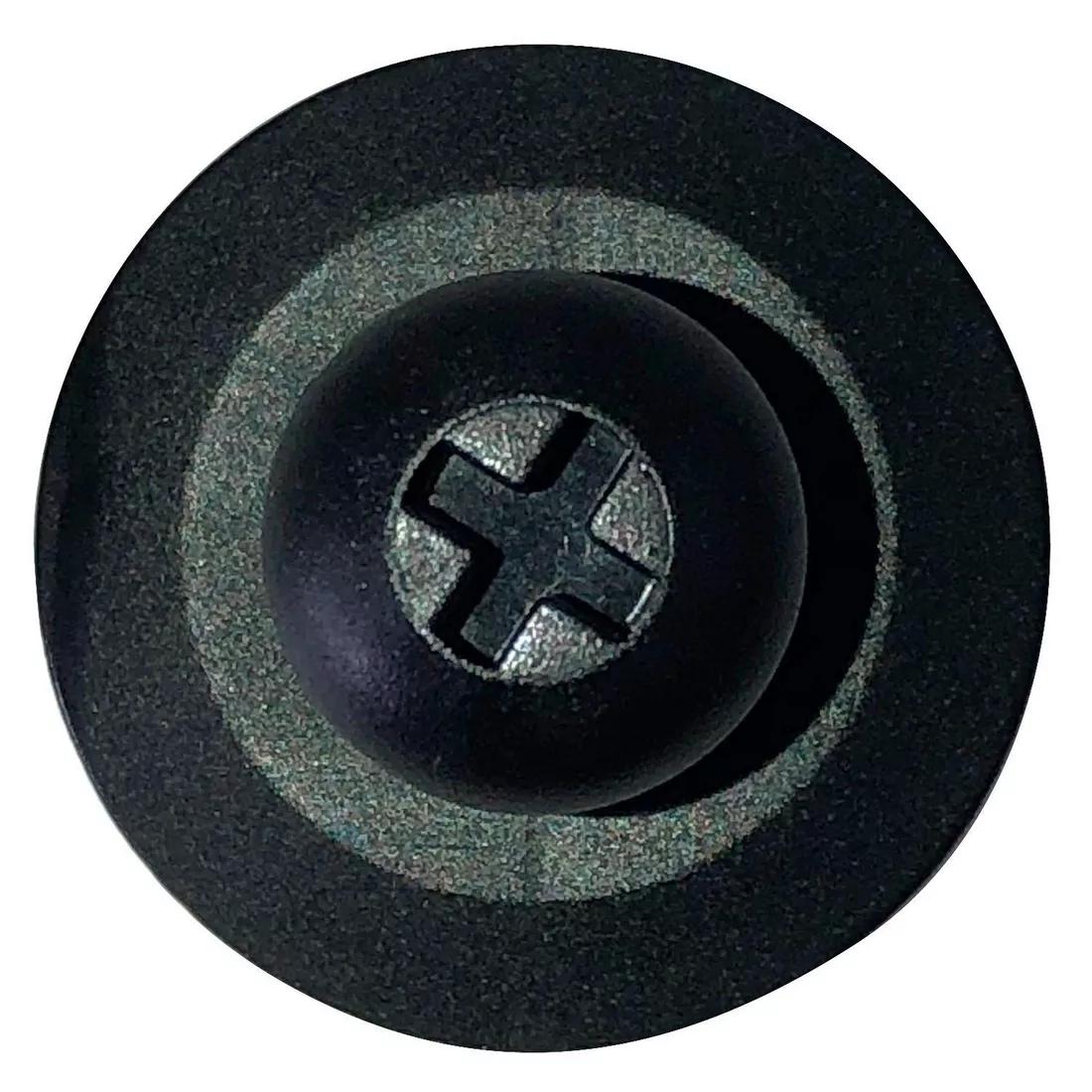

Screw In Rivet 8.0 mm 10.0 mm (PT) PA Black
Screw Rivers made from Nylon 6/6. The truss shaped anchor head features a crosshead drive. Ideal for use in electrical and electronic assemblies due to its good electrical insulation properties. Install the fastener by screwing the head down into the assembly.
Loading...
| Quantità | Prezzo unitario |
|---|---|
| 1000 - 4999 | 0,1977 € |
| 5000 - 9999 | 0,1842 € |
| 10000 + | 0,1734 € |
Informazioni utili
Documenti
Specifiche
Imperiale
Metrico

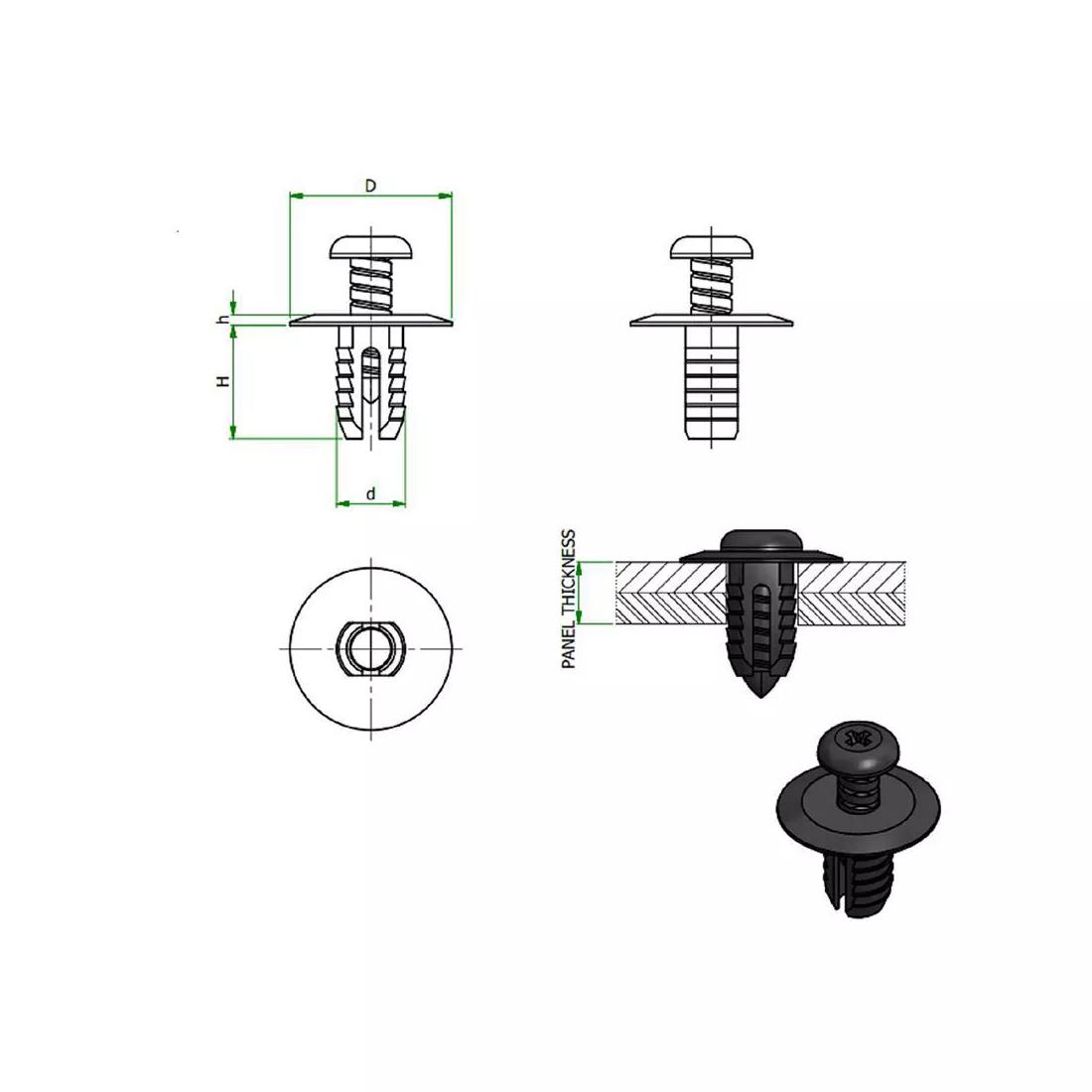

| Panel Thickness Range | 3.0 - 10.0 mm |
|---|---|
| Compatible Hole Diameter | 8.0 mm |
| Head Diameter | 20.0 mm |
| Head Height | 4.0 mm |
| Anchor Length | 14.0 mm |
| Hole Diameter | 8.0 mm |
| Rivet Type | Screw Rivet |
| Rivet Fitting Style | Screw-In |
| Rivet Head Shape | Truss |
| Drive Type | Cross Recess Drive |
| Style | 4 |
| Rivet Material | Nylon 6/6 |
| Pin Material | Nylon 6/6 |
| Colour | Black |
