PCB Card Guides - Horizontal/Snap In/Double Tapered Ends

In production

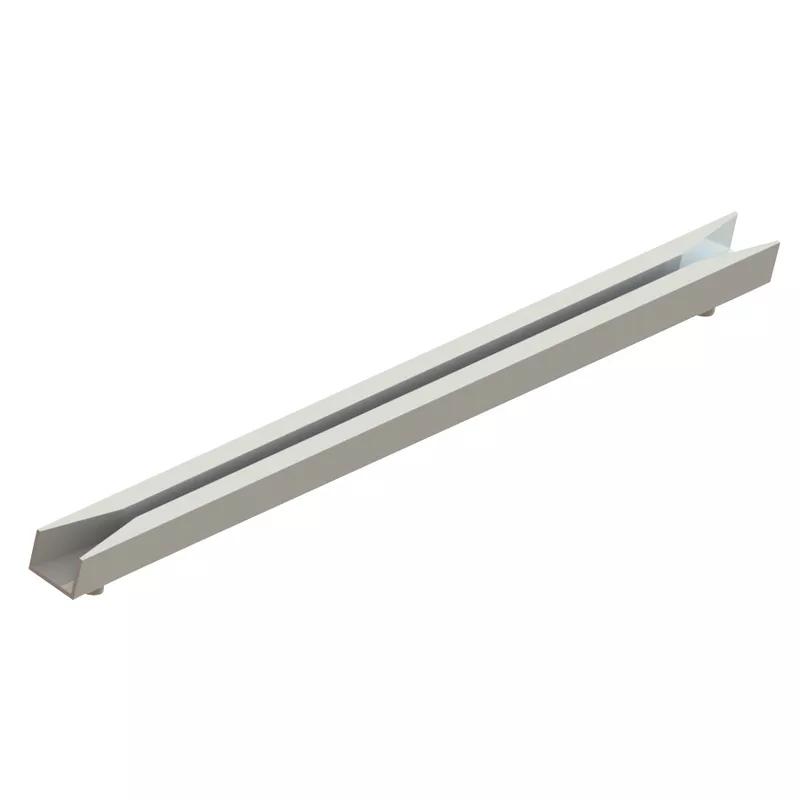

Snap In Horizontal Card Guides have two tapered ends for quick and easy insertion of the printed circuit board while providing a neat finished appearance. These tension guides support boards horizontally in tight spaces like a PCB rack.

Need a quote?

For large volumes and customised products, add to your cart and click request a quote, or email sales@essentracomponents.com.sg and we will respond within 2 working days

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Product SKUs information
Quick View Item Code Price range Availability Material Overall Width Mounting Method
RCG-1
In production
76.2 mm
Push Fit
RSDC-300
2961 In stock
76.2 mm
Push Fit
RSDC-600
3317 In stock
152.4 mm
Push Fit
RSDC-750
633 In stock
190.5 mm
Push Fit
RSDC-800
1057 In stock
203.2 mm
Push Fit
RCG-3
2066 In stock
152.4 mm
Push Fit
RSDC-400
In production
101.6 mm
Push Fit
RSDC-700
2288 In stock
177.8 mm
Push Fit
RSDC-250
In production
63.5 mm
Push Fit
RSDC-550
In production
139.7 mm
Push Fit
RSDC-500
1051 In stock
127 mm
Push Fit
RSDC-350
4047 In stock
88.9 mm
Push Fit
RCG-2
In production
101.6 mm
Push Fit
RSDC-650
6668 In stock
164.1 mm
Push Fit
RCG-4
In production
215.9 mm
Push Fit
RSDC-450
738 In stock
114.3 mm
Push Fit
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RCG-1


Stock Levels
In production
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    63.5 mm
  • Maximum Operating Temperature
    85 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-300


Stock Levels
2961 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    50.8 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-600


Stock Levels
3317 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    127.0 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-750


Stock Levels
633 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    165.1 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-800


Stock Levels
1057 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    177.8 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RCG-3


Stock Levels
2066 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    139.7 mm
  • Maximum Operating Temperature
    85 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-400


Stock Levels
In production
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    76.2 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-700


Stock Levels
2288 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    152.4 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-250


Stock Levels
In production
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    38.1 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-550


Stock Levels
In production
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    114.3 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-500


Stock Levels
1051 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    101.6 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-350


Stock Levels
4047 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    63.5 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RCG-2


Stock Levels
In production
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    88.9 mm
  • Maximum Operating Temperature
    85 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-650


Stock Levels
6668 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    139.7 mm
  • Maximum Operating Temperature
    90 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RCG-4


Stock Levels
In production
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    203.2 mm
  • Maximum Operating Temperature
    85 °C
Horizontal Card Guide - Accepts Panel Thickness 1.6 mm | 0.063 in ;

RSDC-450


Stock Levels
738 In stock
Attributes
  • Colour
    Natural
  • Mounting Method
    Push Fit
  • Accepts Panel Thickness
    1.6 mm
  • Distance Between Fixing Holes
    88.9 mm
  • Maximum Operating Temperature
    90 °C
