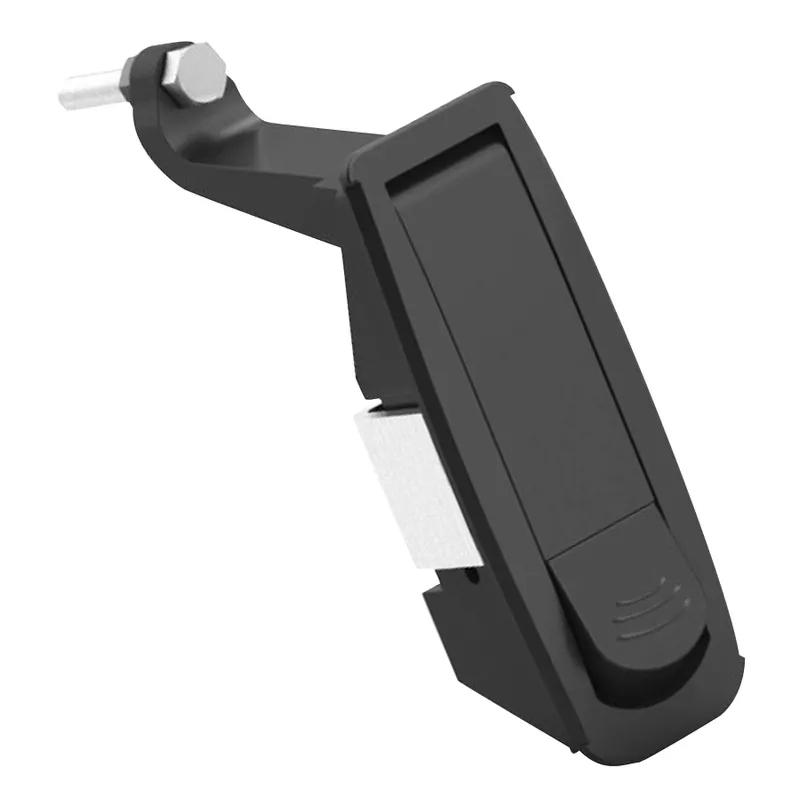

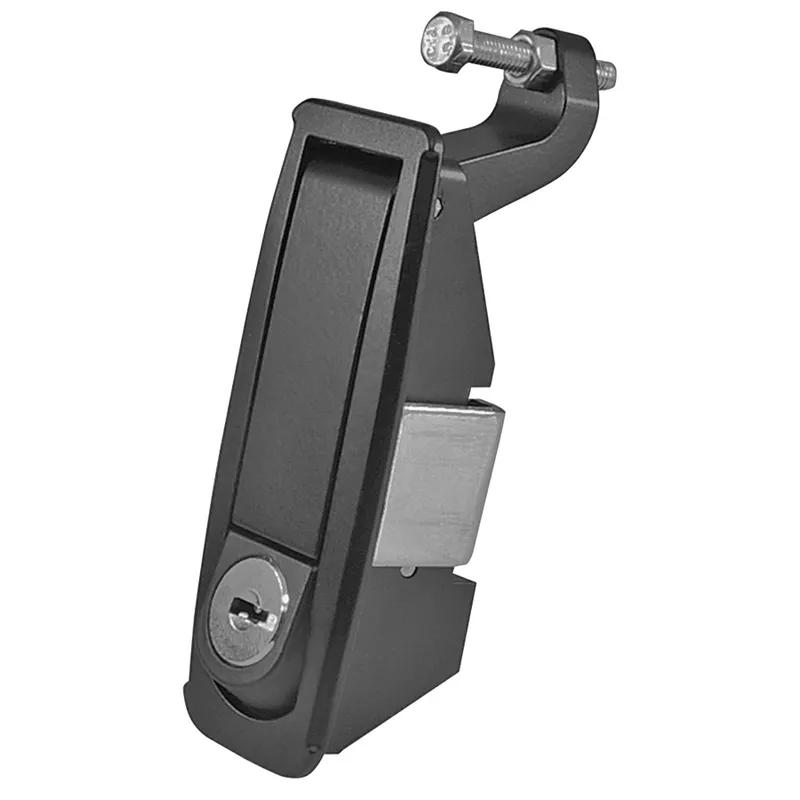

Offset Compression Lever Latches
In stock
Offset Compression Lever Latches are available in either a 0-24mm or 24-26mm adjustable grip range. They can come as either keyed alike, keyed different or with no locking mechanism. Where locking they are supplied with two keys per lock.
They are suitable for a panel thickness of less than, and including, 2mm and consist of an aesthetically pleasing trigger design.
Key type options include; No Key, Keyed Alike, Keyed to Differ, Padlock only, 16mm Rod Key, K7010-04, K332 and CH751.
- Materials: Die Cast Zinc Alloy and Stainless Steel
- Handle Finish options: Bright Chrome, Powder Coated and Stainless Steel
- Colours: Black, Grey and Natural
- To suit M5 fixings (not supplied)
- Provides good gasket compression
- Easy to use compression latch
- Trigger designs included: Raised, Flush and Over-Centre.
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Hide
Show
Filters
Key Type
All
Locking Mechanism
All
Overall Length
All
Maximum Grip
All
Body Height
All
Sort by
None| Item Code | Price range | Availability | Body Height | Maximum Grip | Overall Length | Locking Mechanism | Key Type | View |
|---|---|---|---|---|---|---|---|---|
| 4.9466 USD - 5.207 USD | Request the lead time here |
26.0 mm
|
24.0 mm
|
109.0 mm
|
Locking
|
Keyed Alike
|
||
| 30.3968 USD - 30.3968 USD | Request the lead time here |
|
|
221.0 mm
|
Locking
|
K7010-04 Key
|
||
| 9.8383 USD - 10.3562 USD | Request the lead time here |
|
|
170.2 mm
|
|
Padlocking Key
|
||
| 14.4671 USD - 14.4671 USD | Request the lead time here |
|
|
221.0 mm
|
Locking
|
K7010-04 Key
|
||
| 3.8468 USD - 3.8468 USD | Request the lead time here |
|
16.0 mm
|
93.0 mm
|
Locking
|
K332
|
||
| 3.1556 USD - 3.1556 USD | Request the lead time here |
|
16.0 mm
|
93.0 mm
|
Non-Locking
|
Keyless
|
||
| 8.3471 USD - 8.7865 USD | Request the lead time here |
|
|
|
|
|
||
| 15.219 USD - 16.8632 USD | Request the lead time here |
26.0 mm
|
46.0 mm
|
109.0 mm
|
Locking
|
Keyed Alike
|
||
| 2.2805 USD - 2.2805 USD | 14420 In stock |
31.7 mm
|
|
155.0 mm
|
Non-Locking
|
Keyless
|
||
| 1772201E | 16.3012 USD - 18.0623 USD | 89 In stock |
26.0 mm
|
24.0 mm
|
109.0 mm
|
Locking
|
Keyed Alike
|
|
| 5.0646 USD - 5.0646 USD | 644 In stock |
31.7 mm
|
|
155.0 mm
|
Locking
|
CH751 Key
|
||
| 8.9025 USD - 9.371 USD | Request the lead time here |
|
|
176.9 mm
|
|
Adjustable 16mm Rod Key
|
||
| 3.7905 USD - 3.99 USD | 2280 In stock |
26.0 mm
|
24.0 mm
|
109.0 mm
|
Non-Locking
|
No Key
|
||
| 5.037 USD - 5.3022 USD | Request the lead time here |
26.0 mm
|
24.0 mm
|
109.0 mm
|
Locking
|
Keyed To Differ
|
||
| 5.3295 USD - 5.61 USD | 327 In stock |
26.0 mm
|
46.0 mm
|
109.0 mm
|
Locking
|
Keyed To Differ
|
||
| 4.2945 USD - 4.5206 USD | 221 In stock |
26.0 mm
|
46.0 mm
|
109.0 mm
|
Non-Locking
|
No Key
|
||
| 5.2465 USD - 5.5226 USD | 92 In stock |
26.0 mm
|
46.0 mm
|
109.0 mm
|
Locking
|
Keyed Alike
|
||
Compression Lever Latch - Keyed Alike; Grip Range - 0 - 24.0 mm | 0 - 0.945 in; Black Powder Coated
- Price Range
- 5.207 USD - 4.9466 USD
- Stock Levels
- Request the lead time here

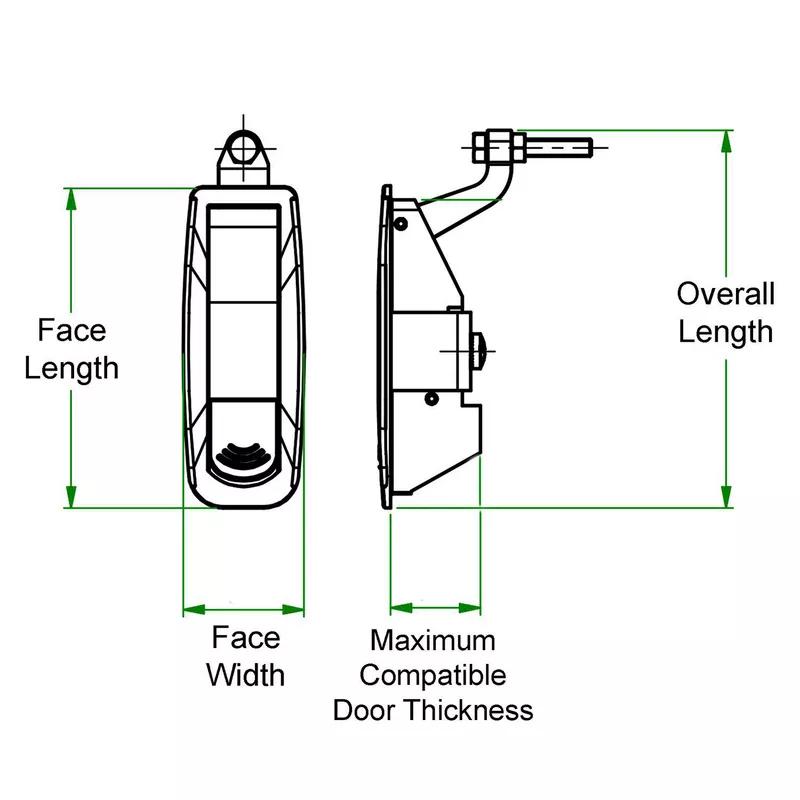

Attributes
-
Body Height
26.0 mm -
Face Length
93.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
0 mm
Raised Trigger Handle Latch - Universal; 1.0 - 3.0 mm | 0.039 - 0.118 in; K7010-04 Key; Stainless Steel
- Price Range
- 30.3968 USD - 30.3968 USD
- Stock Levels
- Request the lead time here
Attributes
-
Maximum Compatible Door Thickness
3.0 mm -
Overall Length
221.0 mm -
Colour
Natural -
Handle Material
Stainless Steel -
Key Type
K7010-04 Key
Compression Cam Latch - Padlocking Key ; ; Die Cast Zinc Alloy
- Price Range
- 10.3562 USD - 9.8383 USD
- Stock Levels
- Request the lead time here
Attributes
-
Overall Length
170.2 mm -
Colour
Black -
Handle Finish
Powder Coated -
Handle Material
Die Cast Zinc Alloy -
Key Type
Padlocking Key
Compression Cam Latch - K7010-04 Key ; ; Die Cast Zinc Alloy
- Price Range
- 14.4671 USD - 14.4671 USD
- Stock Levels
- Request the lead time here
Attributes
-
Overall Length
221.0 mm -
Colour
Grey -
Handle Finish
Powder Coated -
Handle Material
Die Cast Zinc Alloy -
Key Type
K7010-04 Key
Lock - K332 ; Compatible Door Thickness Range 1.0 - 5.0 mm | 0.039 - 0.197 in; Die Cast Zinc Alloy
- Price Range
- 3.8468 USD - 3.8468 USD
- Stock Levels
- Request the lead time here
Attributes
-
Face Length
86.0 mm -
Face Width
25.0 mm -
Maximum Compatible Door Thickness
5.0 mm -
Maximum Grip
16.0 mm -
Overall Length
93.0 mm
Lock - Keyless ; Compatible Door Thickness Range 1.0 - 5.0 mm | 0.039 - 0.197 in; Die Cast Zinc Alloy
- Price Range
- 3.1556 USD - 3.1556 USD
- Stock Levels
- Request the lead time here
Attributes
-
Face Length
86.0 mm -
Face Width
25.0 mm -
Maximum Compatible Door Thickness
5.0 mm -
Maximum Grip
16.0 mm -
Overall Length
93.0 mm
Compression Cam Latch - ; ;
- Price Range
- 8.7865 USD - 8.3471 USD
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Handle Finish
Bright Chrome -
Latch Material
Die Cast Zinc Alloy
Compression Cam Latch - Keyed Alike ; Compatible Door Thickness Range 2.0 mm | 0.079 in; Die Cast Zinc Alloy
- Price Range
- 16.8632 USD - 15.219 USD
- Stock Levels
- Request the lead time here
Attributes
-
Body Height
26.0 mm -
Face Length
93.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
24.0 mm
Lock - Keyless ; ; Die Cast Zinc Alloy
- Price Range
- 2.2805 USD - 2.2805 USD
- Stock Levels
- 14420 In stock
Attributes
-
Body Height
31.7 mm -
Face Length
52.0 mm -
Face Width
33.0 mm -
Overall Length
155.0 mm -
Colour
Natural
Compression Cam Latch - Keyed Alike ; Compatible Door Thickness Range 2.0 mm | 0.079 in; Die Cast Zinc Alloy
- Price Range
- 18.0623 USD - 16.3012 USD
- Stock Levels
- 89 In stock
Attributes
-
Body Height
26.0 mm -
Face Length
93.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
24.0 mm
Lock - CH751 Key ; ; Die Cast Zinc Alloy
- Price Range
- 5.0646 USD - 5.0646 USD
- Stock Levels
- 644 In stock
Attributes
-
Body Height
31.7 mm -
Face Length
52.0 mm -
Face Width
33.0 mm -
Overall Length
155.0 mm -
Colour
Natural
Compression Cam Latch - Adjustable 16mm Rod Key ; ; Die Cast Zinc Alloy
- Price Range
- 9.371 USD - 8.9025 USD
- Stock Levels
- Request the lead time here
Attributes
-
Overall Length
176.9 mm -
Colour
Black -
Handle Finish
Powder Coated -
Handle Material
Die Cast Zinc Alloy -
Key Type
Adjustable 16mm Rod Key
Flush Trigger Handle Latch - Maximum Grip - 24.0 mm | 0.945 in ; ; ; Key Type - No Key
- Price Range
- 3.99 USD - 3.7905 USD
- Stock Levels
- 2280 In stock
Attributes
-
Body Height
26.0 mm -
Face Length
93.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
24.0 mm
Compression Lever Latch - Keyed To Differ; Grip Range - 0 - 24.0 mm | 0 - 0.945 in; Black Powder Coated
- Price Range
- 5.3022 USD - 5.037 USD
- Stock Levels
- Request the lead time here
Attributes
-
Body Height
26.0 mm -
Face Length
85.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
0 mm
Compression Lever Latch - Keyed To Differ; Grip Range - 24.0 - 46.0 mm | 0.945 - 1.811 in; Black Powder Coated
- Price Range
- 5.61 USD - 5.3295 USD
- Stock Levels
- 327 In stock
Attributes
-
Body Height
26.0 mm -
Face Length
85.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
24.0 mm
Compression Lever Latch - No Key; Grip Range - 24.0 - 46.0 mm | 0.945 - 1.811 in; Black Powder Coated
- Price Range
- 4.5206 USD - 4.2945 USD
- Stock Levels
- 221 In stock
Attributes
-
Body Height
26.0 mm -
Face Length
93.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
24.0 mm
Compression Lever Latch - Keyed Alike; Grip Range - 24.0 - 46.0 mm | 0.945 - 1.811 in; Black Powder Coated
- Price Range
- 5.5226 USD - 5.2465 USD
- Stock Levels
- 92 In stock
Attributes
-
Body Height
26.0 mm -
Face Length
85.0 mm -
Face Width
35.0 mm -
Maximum Compatible Door Thickness
2.0 mm -
Minimum Grip
24.0 mm
