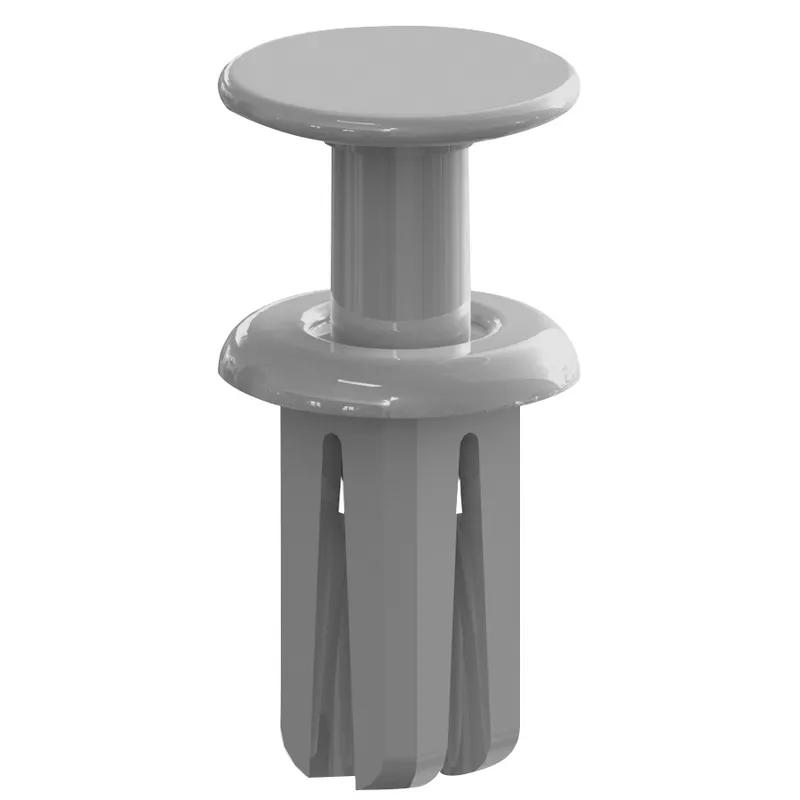

Push-In Rivets - Plastic, Push, Round/Square Hole
In stock
These Push-In Rivets feature a pin for easy finger-pressure installation. They are a versatile rivet that can be mounted in round, square or rectangular holes. Square hole mounting is used for anti-rotation applications.
The rivet features a pin and a grommet, with options supplied either assembled or pre-assembled. These rivets can also be removed after installation, for added convenience.
- Material: Nylon 6/6
- Colours: Black and Natural
- UL94 V0 and UL94 V2 Material Flammability Rating
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Hide
Show
Filters
Panel Thickness Range
All
Mounting Hole Shape
All
Colour
All
Material Flammability Standard
All
Sort by
None| Item Code | Price range | Availability | Material Flammability Standard | Mounting Hole Shape | Colour | Panel Thickness Range | View |
|---|---|---|---|---|---|---|---|
| 6990 In stock |
UL94 V-2
|
Round
|
Natural
|
1.6 mm
|
|||
| Request the lead time here |
UL94 V-2
|
Round
|
Natural
|
3.2 mm
|
|||
| 0.2185 USD - 0.242 USD | 1103 In stock |
UL94 V-0
|
Round/Square
|
Black
|
1.5 - 3.5 mm
|
||
| 0.0613 USD - 0.068 USD | 600475 In stock |
UL94 V-2
|
Round/Square
|
Natural
|
3.5 - 5.0 mm
|
||
| 0.2395 USD - 0.2654 USD | 14350 In stock |
UL94 V-0
|
Round/Square
|
Black
|
3.5 - 5.5 mm
|
||
Removable Push-In Rivet - Panel Thickness Range 1.6 mm | 0.063 in; Natural; Nylon
- Stock Levels
- 6990 In stock
Attributes
-
Mounting Hole Shape
Round -
Hole Diameter A
4.8 mm -
Panel Thickness Range
1.6 mm -
Anchor Length
12.7 mm -
Head Diameter
9.5 mm
Removable Push-In Rivet - Panel Thickness Range 3.2 mm | 0.126 in; Natural; Nylon
- Stock Levels
- Request the lead time here
Attributes
-
Mounting Hole Shape
Round -
Hole Diameter A
4.8 mm -
Panel Thickness Range
3.2 mm -
Anchor Length
12.7 mm -
Head Diameter
9.5 mm
Releasable Push-In Rivet - Hole Diameter B 4.5 mm | 0.177 in; Panel Thickness Range 1.5 - 3.5 mm | 0.059 - 0.138 in; Black; Nylon
- Price Range
- 0.242 USD - 0.2185 USD
- Stock Levels
- 1103 In stock
Attributes
-
Mounting Hole Shape
Round/Square -
Hole Diameter B
4.5 mm -
Minimum Hole Diameter
4.8 mm -
Maximum Hole Diameter
5.3 mm -
Panel Thickness Range
1.5 - 3.5 mm
Push Rivet Push-In Rivet - Hole Diameter B 5.6 mm | 0.22 in; Panel Thickness Range 3.5 - 5.0 mm | 0.138 - 0.197 in; Natural; Nylon
- Price Range
- 0.068 USD - 0.0613 USD
- Stock Levels
- 600475 In stock
Attributes
-
Mounting Hole Shape
Round/Square -
Hole Diameter A
6.4 mm -
Hole Diameter B
5.6 mm -
Panel Thickness Range
3.5 - 5.0 mm -
Anchor Length
12.5 mm
Releasable Push-In Rivet - Hole Diameter B 5.5 mm | 0.217 in; Panel Thickness Range 3.5 - 5.5 mm | 0.138 - 0.217 in; Black; Nylon
- Price Range
- 0.2654 USD - 0.2395 USD
- Stock Levels
- 14350 In stock
Attributes
-
Mounting Hole Shape
Round/Square -
Hole Diameter B
5.5 mm -
Minimum Hole Diameter
4.8 mm -
Maximum Hole Diameter
5.3 mm -
Panel Thickness Range
3.5 - 5.5 mm
