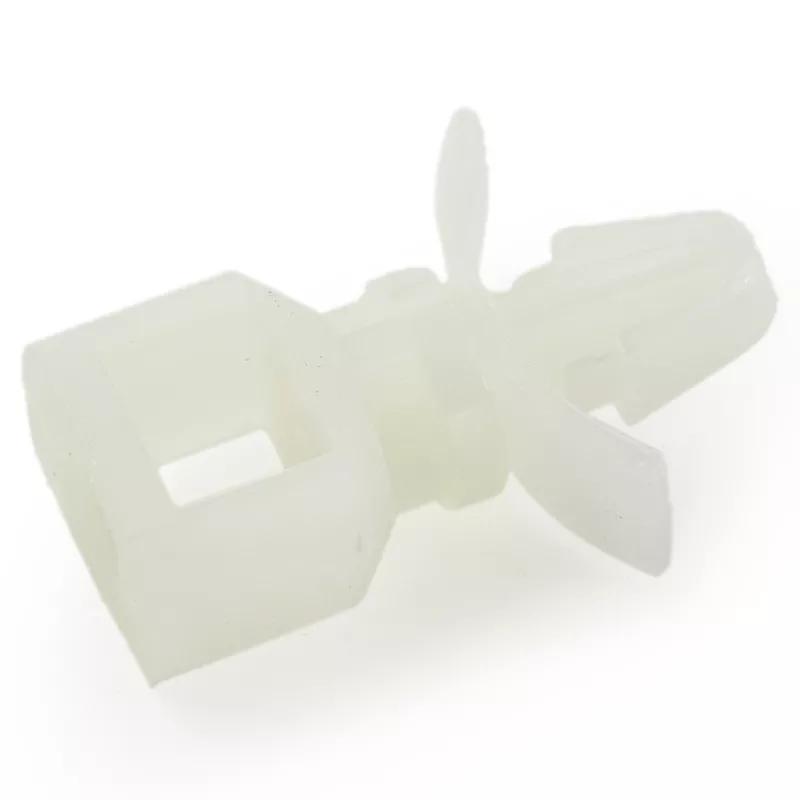

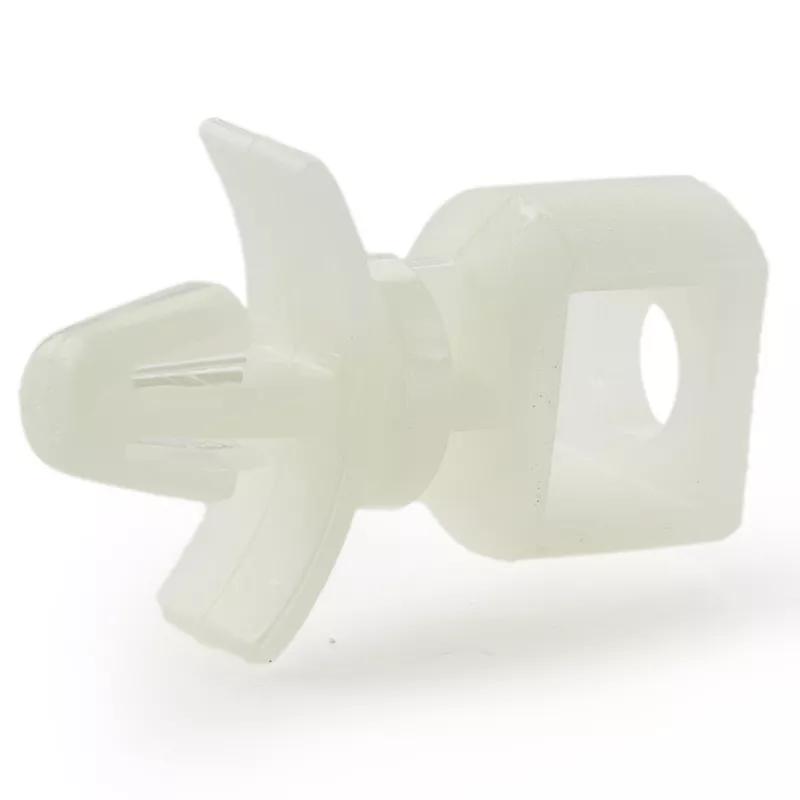

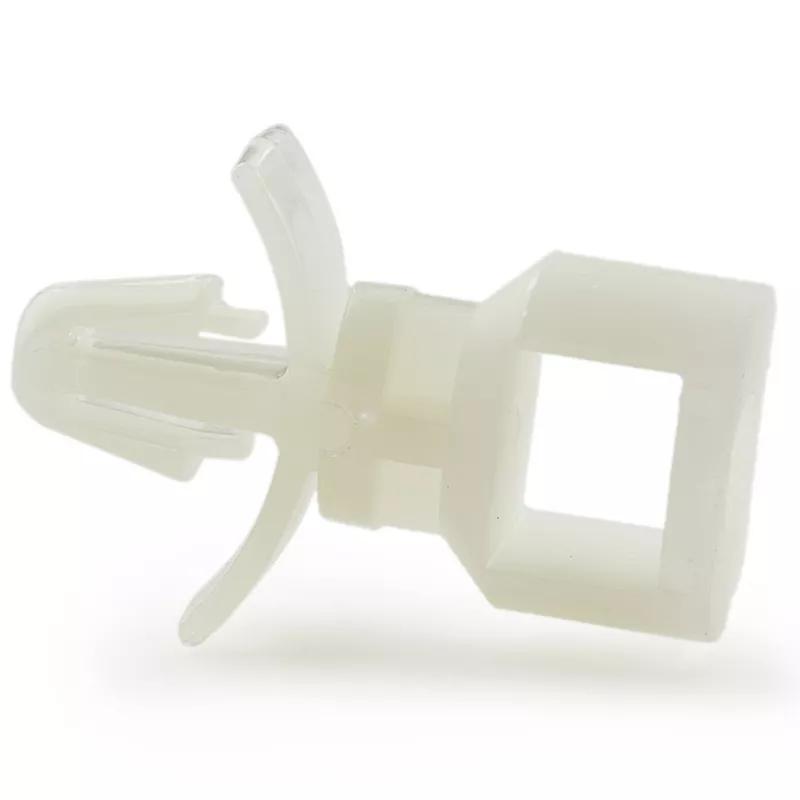

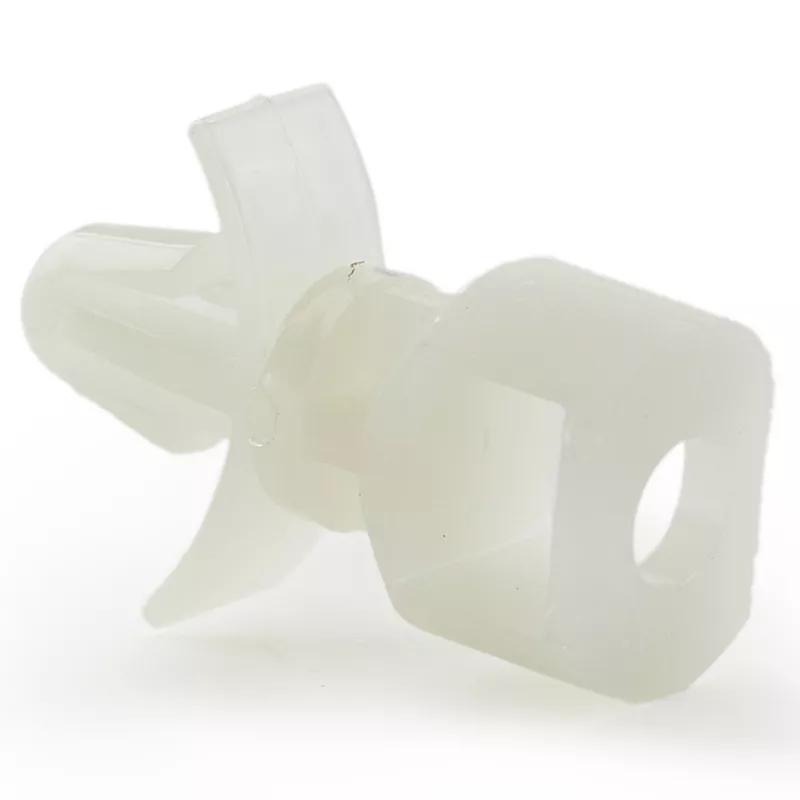

Snap Rivet Locking Support - 2.0 mm | 0.079 in-2.0 mm | 0.079 in ; 4.8 mm | 0.189 in
This locking circuit board support is designed to be fixed to a panel with a snap rivet from our SR range. The top lock has wings to provide tension and maintain a rigid connection. This item is manufactured from material rated UL94 V-2.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | 0.0785 USD |
| 10000 - 39999 | 0.0747 USD |
| 40000 + | 0.0708 USD |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Hole Fix |
| Material | PA |
| Hole Diameter A | 4.8 mm |
| Locking Head Height A | 5.6 mm |
| Maximum Operating Temperature | 85 °C |
| Maximum Panel Thickness A | 2.0 mm |
| Maximum Panel Thickness B | 2.7 mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Panel Thickness A | 0.8 mm |
| Panel Thickness A Range | 0.8 - 2.0 mm |
| Panel Thickness B Range | 0.7 - 2.7 mm |
| Spacer Length | 12.7 mm |
| Full Material | Polyamide 66 |
| Material Flammability Standard | UL94 V-2 |
