PCB Support Pillars - Locking/Cupped Reverse
In stock

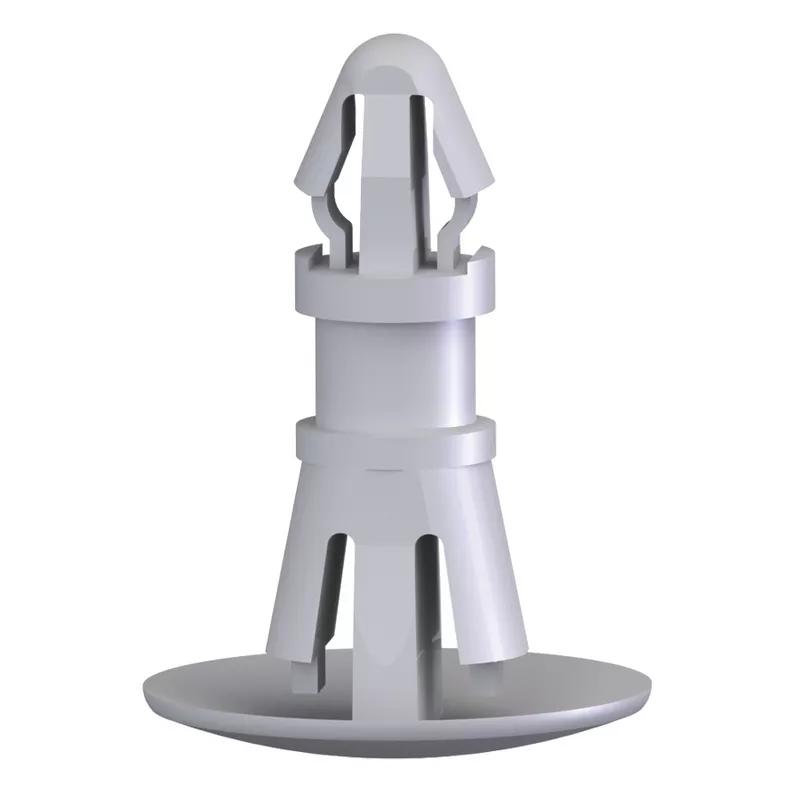

These reverse mounts PCB support pillars are installed from the underside of the chassis. They have a thin buttonhead for minimal protrusion under the chassis. The top of these is a locking arrowhead that holds the PC Board in place.
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Filter or Search Variants
Use the filters or search below to find what you're looking for
Imperial
Metric
Sort by
None| Item Code | Price range | Availability | Panel Thickness A Range | Panel Thickness B Range | Maximum Panel Thickness B | Spacer Length | View |
|---|---|---|---|---|---|---|---|
| 0.0421 USD - 0.0466 USD | 1075 In stock |
1.6 mm
|
1.5 - 1.6 mm
|
1.6 mm
|
6.4 mm
|
||
| 0.055 USD - 0.0609 USD | 70 In stock |
1.6 mm
|
1.5 - 1.6 mm
|
1.6 mm
|
14.3 mm
|
||
| 0.0842 USD - 0.0933 USD | 1060 In stock |
1.6 mm
|
1.6 mm
|
1.6 mm
|
11.1 mm
|
||
| 0.0743 USD - 0.0824 USD | 5442 In stock |
1.6 mm
|
1.6 - 1.6 mm
|
1.6 mm
|
10.0 mm
|
||
| 0.0743 USD - 0.0824 USD | 55740 In stock |
1.6 mm
|
2.0 mm
|
2.0 mm
|
8.0 mm
|
||
| 0.0612 USD - 0.0677 USD | 3037 In stock |
1.6 mm
|
1.6 - 2.0 mm
|
2.0 mm
|
6.0 mm
|
||
| 0.0842 USD - 0.0933 USD | 72050 In stock |
1.6 mm
|
1.6 mm
|
1.6 mm
|
12.7 mm
|
||
| 0.0454 USD - 0.0503 USD | 70 In stock |
1.6 mm
|
1.5 - 1.6 mm
|
1.6 mm
|
7.9 mm
|
||
| 0.0812 USD - 0.09 USD | 130 In stock |
1.6 mm
|
1.2 - 2.0 mm
|
2.0 mm
|
6.4 mm
|
||
| 0.0743 USD - 0.0824 USD | 3889 In stock |
1.6 mm
|
2.0 mm
|
2.0 mm
|
10.0 mm
|
||
| 0.046 USD - 0.0508 USD | 57 In stock |
1.6 mm
|
1.6 - 1.6 mm
|
1.6 mm
|
7.0 mm
|
||
| 0.0531 USD - 0.0589 USD | 1040 In stock |
1.0 mm
|
1.0 mm
|
1.0 mm
|
8.0 mm
|
||
| 0.0735 USD - 0.0815 USD | 90 In stock |
1.6 mm
|
0.8 - 1.2 mm
|
1.2 mm
|
9.5 mm
|
||
| 0.048 USD - 0.0531 USD | 5065 In stock |
1.6 mm
|
1.6 mm
|
1.6 mm
|
6.4 mm
|
||
| 0.0454 USD - 0.0504 USD | 93428 In stock |
1.6 mm
|
0.5 - 1.0 mm
|
1.0 mm
|
14.0 mm
|
||
| 0.0743 USD - 0.0824 USD | 20125 In stock |
1.6 mm
|
2.0 mm
|
2.0 mm
|
6.0 mm
|
||
| 0.0301 USD - 0.0333 USD | Request the lead time here |
1.6 mm
|
1.5 - 1.6 mm
|
1.6 mm
|
14.3 mm
|
||
| 0.0743 USD - 0.0824 USD | 571 In stock |
1.6 mm
|
1.6 - 1.6 mm
|
1.6 mm
|
8.0 mm
|
||
| 0.026 USD - 0.0287 USD | 1000 In stock |
1.6 mm
|
1.5 - 1.6 mm
|
1.6 mm
|
9.5 mm
|
||
| 0.0735 USD - 0.0815 USD | 1045 In stock |
1.6 mm
|
0.8 - 1.2 mm
|
1.2 mm
|
8.0 mm
|
||
Reverse Locking Support - 6.4 mm | 0.252 in ; UL94 V-2 ; PA6
- Price Range
- 0.0466 USD - 0.0421 USD
- Stock Levels
- 1075 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.5 mm
Reverse Locking Support - 14.3 mm | 0.563 in ; UL94 V-2 ; PA6
- Price Range
- 0.0609 USD - 0.055 USD
- Stock Levels
- 70 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.5 mm
Reverse Locking Support - 11.1 mm | 0.437 in ; UL94 V-2 ; PA6
- Price Range
- 0.0933 USD - 0.0842 USD
- Stock Levels
- 1060 In stock
Attributes
-
Colour
Natural -
Material
PA6 -
Head Diameter
9.5 mm -
Hole Diameter A
4.8 mm -
Hole Diameter B
4.8 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 10.0 mm | 0.394 in ; Style 3
- Price Range
- 0.0824 USD - 0.0743 USD
- Stock Levels
- 5442 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.6 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 8.0 mm | 0.315 in ; Style 3
- Price Range
- 0.0824 USD - 0.0743 USD
- Stock Levels
- 55740 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.6 mm
Reverse Locking Support - Hole Diameter A 4.0 mm | 0.157 in ; Hole Diameter B 6.5 mm | 0.256 in - Spacer Length 6.0 mm | 0.236 in ;
- Price Range
- 0.0677 USD - 0.0612 USD
- Stock Levels
- 3037 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
10.0 mm
Reverse Locking Support - 12.7 mm | 0.5 in ; UL94 V-2 ; PA6
- Price Range
- 0.0933 USD - 0.0842 USD
- Stock Levels
- 72050 In stock
Attributes
-
Colour
Natural -
Material
PA6 -
Head Diameter
9.5 mm -
Hole Diameter A
4.8 mm -
Hole Diameter B
4.8 mm
Reverse Locking Support - 7.9 mm | 0.311 in ; UL94 V-2 ; PA6
- Price Range
- 0.0503 USD - 0.0454 USD
- Stock Levels
- 70 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.5 mm
Reverse Locking Support - Hole Diameter A 4.0 mm | 0.157 in ; Hole Diameter B 5.4 mm | 0.213 in - Spacer Length 6.4 mm | 0.252 in ; Style 2
- Price Range
- 0.09 USD - 0.0812 USD
- Stock Levels
- 130 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
12.7 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 10.0 mm | 0.394 in ; Style 3
- Price Range
- 0.0824 USD - 0.0743 USD
- Stock Levels
- 3889 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.6 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 7.0 mm | 0.276 in ; Style 3
- Price Range
- 0.0508 USD - 0.046 USD
- Stock Levels
- 57 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.6 mm
Reverse Locking Support - 8.0 mm | 0.315 in ; UL94 V-2 ; PA6
- Price Range
- 0.0589 USD - 0.0531 USD
- Stock Levels
- 1040 In stock
Attributes
-
Colour
Natural -
Material
PA6 -
Hole Diameter A
5.0 mm -
Hole Diameter B
5.5 mm -
Maximum Operating Temperature
85 °C
Reverse Locking Support - Hole Diameter A 4.0 mm | 0.157 in ; Hole Diameter B 6.0 mm | 0.236 in - Spacer Length 9.5 mm | 0.374 in ; Style 2
- Price Range
- 0.0815 USD - 0.0735 USD
- Stock Levels
- 90 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
10.0 mm
Reverse Locking Support - 6.4 mm | 0.252 in ; UL94 V-2 ; PA6
- Price Range
- 0.0531 USD - 0.048 USD
- Stock Levels
- 5065 In stock
Attributes
-
Colour
Natural -
Material
PA6 -
Head Diameter
9.5 mm -
Hole Diameter A
4.8 mm -
Hole Diameter B
4.8 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 14.0 mm | 0.551 in ; Style 2
- Price Range
- 0.0504 USD - 0.0454 USD
- Stock Levels
- 93428 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Hole Diameter A
4.0 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 6.0 mm | 0.236 in ; Style 3
- Price Range
- 0.0824 USD - 0.0743 USD
- Stock Levels
- 20125 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.6 mm
Reverse Locking Support - 14.3 mm | 0.563 in ; UL94 V-2 ; PA6
- Price Range
- 0.0333 USD - 0.0301 USD
- Stock Levels
- Request the lead time here
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Fit Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.5 mm
Reverse Locking Support - Snap Locking, Arrowhead - Maximum Panel Thickness A 1.6 mm | 0.063 in ; Spacer Length 8.0 mm | 0.315 in ; Style 3
- Price Range
- 0.0824 USD - 0.0743 USD
- Stock Levels
- 571 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.6 mm
Reverse Locking Support - Hole Diameter A 3.2 mm | 0.126 in ; Hole Diameter B 4.8 mm | 0.189 in - Spacer Length 9.5 mm | 0.374 in ; Style 1
- Price Range
- 0.0287 USD - 0.026 USD
- Stock Levels
- 1000 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
9.5 mm
Reverse Locking Support - Hole Diameter A 4.0 mm | 0.157 in ; Hole Diameter B 6.0 mm | 0.236 in - Spacer Length 8.0 mm | 0.315 in ; Style 2
- Price Range
- 0.0815 USD - 0.0735 USD
- Stock Levels
- 1045 In stock
Attributes
-
Colour
Natural -
Hole A Fix Type
Snap Lock Fix -
Hole B Fix Type
Snap Lock Fix -
Material
PA6 -
Head Diameter
10.0 mm
