Leaf Hinges - Half Threaded Stud & Half Counter Sunk

In stock

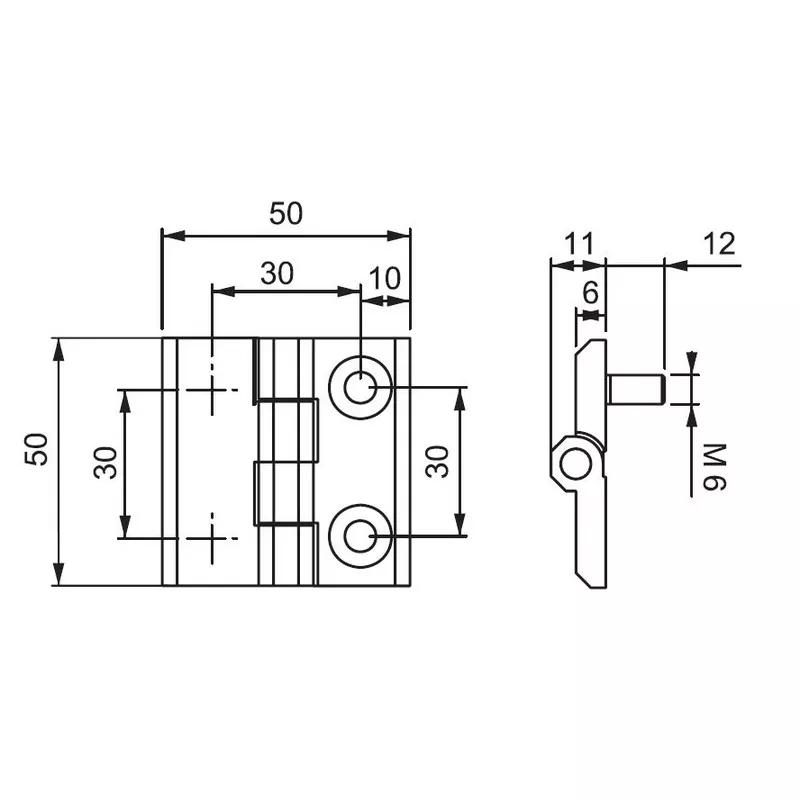

This range of Leaf Hinges is mounted with male stud on one leaf and countersunk screws on the oppostie leaf. The range of Surface Mount Leaf Hinges also referred as Stand Off Hinges is available in various materials to provice a solution to most applications.

Need a quote?

For large volumes and customised products, add to your cart and click request a quote, or email sales@essentracomponents.com.sg and we will respond within 2 working days

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
Show less filters Show more filters
Product SKUs information
Quick View Item Code Price range Availability Leaf Thickness Colour Overall Length Overall Thickness Overall Width Maximum Mounting Hole Size
299202E
3.3819 SGD - 6.5578 SGD In production
5.0 mm
Black
40.0 mm
9.0 mm
40.0 mm
099112E
5.1098 SGD - 9.9083 SGD 292 In stock
6.0 mm
Silver
50.0 mm
11.0 mm
50.0 mm
299122E
4.3729 SGD - 8.4794 SGD 85 In stock
5.0 mm
Black
40.0 mm
9.0 mm
40.0 mm
299112E
4.3725 SGD - 8.4785 SGD 180 In stock
Silver
40 mm
8.5 mm
40 mm
099122E
4.4263 SGD - 8.583 SGD 1952 In stock
6 mm
Black
50 mm
11 mm
50 mm
199202E
3.5822 SGD - 6.9461 SGD 1453 In stock
Black
50 mm
12 mm
50 mm
Free Swinging Hinge - Overall Length - 40.0 mm | 1.575 in ; Overall Width - 40.0 mm | 1.575 in ; Overall Thickness - 9.0 mm | 0.354 in ; Number of Mounting Holes - 2

299202E

Price Range
6.5578 SGD - 3.3819 SGD

Stock Levels
In production
Attributes
  • Leaf Thickness
    5.0 mm
  • Overall Length
    40.0 mm
  • Overall Thickness
    9.0 mm
  • Overall Width
    40.0 mm
  • Cam Material
    Die Cast Zinc Alloy
Free Swinging Hinge - Overall Length - 50.0 mm | 1.969 in ; Overall Width - 50.0 mm | 1.969 in ; Overall Thickness - 11.0 mm | 0.433 in ; Number of Mounting Holes - 2

099112E

Price Range
9.9083 SGD - 5.1098 SGD

Stock Levels
292 In stock
Attributes
  • Leaf Thickness
    6.0 mm
  • Overall Length
    50.0 mm
  • Overall Thickness
    11.0 mm
  • Overall Width
    50.0 mm
  • Cam Material
    Die Cast Zinc Alloy
Free Swinging Hinge - Overall Length - 40.0 mm | 1.575 in ; Overall Width - 40.0 mm | 1.575 in ; Overall Thickness - 9.0 mm | 0.354 in ; Number of Mounting Holes - 2

299122E

Price Range
8.4794 SGD - 4.3729 SGD

Stock Levels
85 In stock
Attributes
  • Leaf Thickness
    5.0 mm
  • Overall Length
    40.0 mm
  • Overall Thickness
    9.0 mm
  • Overall Width
    40.0 mm
  • Cam Material
    Die Cast Zinc Alloy
Free Swinging Hinge - Overall Length - 40 mm | 1.575 in ; Overall Width - 40 mm | 1.575 in ; Overall Thickness - 8.5 mm | 0.335 in ; Number of Mounting Holes - 2

299112E

Price Range
8.4785 SGD - 4.3725 SGD

Stock Levels
180 In stock
Attributes
  • Overall Length
    40 mm
  • Overall Thickness
    8.5 mm
  • Overall Width
    40 mm
  • Cam Material
    Die Cast Zinc Alloy
  • Colour
    Silver
Free Swinging Hinge - Overall Length - 50 mm | 1.969 in ; Overall Width - 50 mm | 1.969 in ; Overall Thickness - 11 mm | 0.433 in ; Number of Mounting Holes - 4

099122E

Price Range
8.583 SGD - 4.4263 SGD

Stock Levels
1952 In stock
Attributes
  • Leaf Thickness
    6 mm
  • Overall Length
    50 mm
  • Overall Thickness
    11 mm
  • Overall Width
    50 mm
  • Cam Material
    Die Cast Zinc Alloy
Free Swinging Hinge - Overall Length - 50 mm | 1.969 in ; Overall Width - 50 mm | 1.969 in ; Overall Thickness - 12 mm | 0.472 in ; Number of Mounting Holes - 2

199202E

Price Range
6.9461 SGD - 3.5822 SGD

Stock Levels
1453 In stock
Attributes
  • Overall Length
    50 mm
  • Overall Thickness
    12 mm
  • Overall Width
    50 mm
  • Cam Material
    Die Cast Zinc Alloy
  • Colour
    Black
