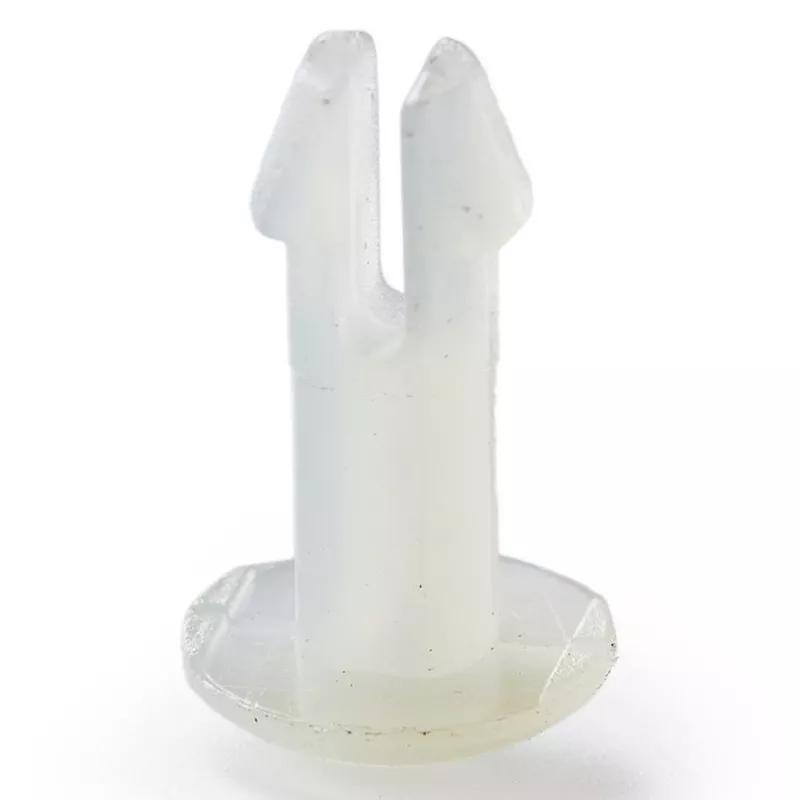

PCB Support - Non-Locking Two Prong Fix ; Hole Diameter A 3.9 mm | 0.154 in ; Spacer Length 6.4 mm | 0.252 in

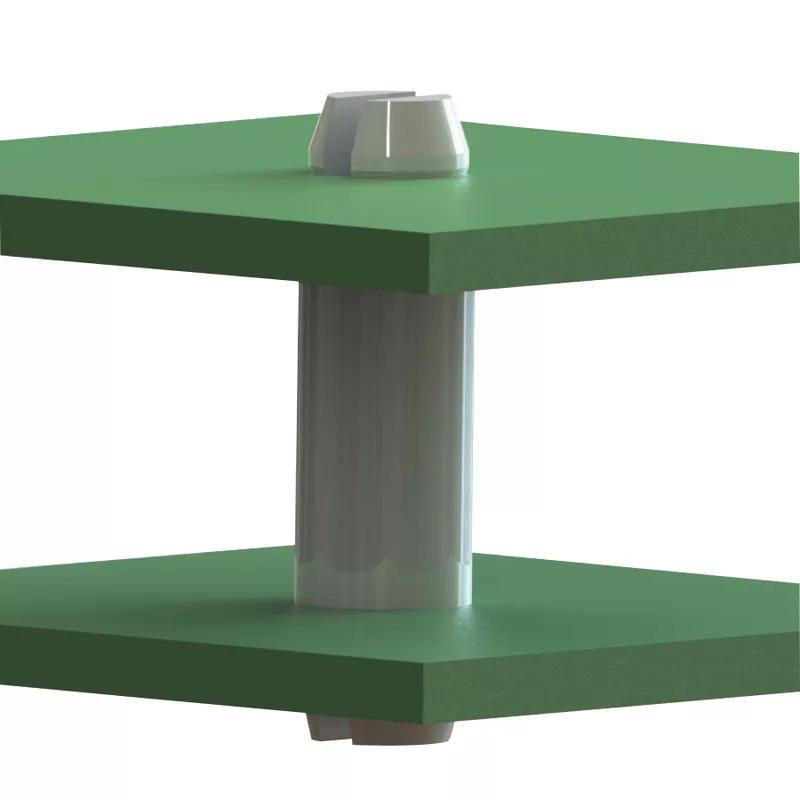

Type 1 MSP. Made from natural nylon 6/6 RMS-01. Double locking mini support posts that easily clip into holes. Can be used to hold 2 PCB together or a single board to a chassis.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | 0.0343 USD |
| 10000 - 39999 | 0.0327 USD |
| 40000 + | 0.031 USD |
Useful Information
Specifications
Imperial
Metric
| Colour | Natural |
|---|---|
| Hole A Fix Type | Non-Locking Two Prong Fix |
| Hole B Fix Type | Locking Two Prong Fix |
| Material | PA |
| Body Diameter | 4.6 mm |
| Hole Diameter A | 3.9 mm |
| Hole Diameter B | 3.9 mm |
| Locking Head Height A | 3.6 mm |
| Locking Head Height B | 3.6 mm |
| Panel Thickness A Range | 1.6 mm |
| Panel Thickness B Range | 1.6 mm |
| Spacer Length | 6.4 mm |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
