What is an engine compartment?
The engine compartment is usually referred to as the engine bay. This is the enclosed area of a vehicle where the engine is housed, along with the supporting infrastructure. It’s one of the most space-constrained and functionally dense areas in automotive design.
Multiple engine components must be packaged efficiently within strict spatial and structural constraints. Its layout directly influences performance, safety, manufacturability, and ease of maintenance.
The design of an engine compartment requires careful consideration of how components are positioned, secured, and supported. This often involves the use of automotive clips and fasteners to ensure stability and reliability under demanding conditions.
As a result, the engine bay shapes how all other vehicle systems are organised and integrated.
Key systems located in an engine bay
To understand how an engine operates in practice, it’s useful to break down the key systems located within the engine bay and the role each one performs.
Engine and powertrain components
At the core of the engine bay are the primary engine parts that generate and transmit power. This includes the engine block, cylinder head and transmission interface. It's also where drive assemblies are housed, such as belts, pulleys, and accessory drives.
These parts make up the entire layout. Their size, orientation, and mounting positions influence structural design and determine how much space remains for other systems. Consider that they operate under constant vibration, torque, and thermal cycling. Secure mounting and effective engine protection makes them critical to maintaining performance and reliability.
Cooling systems
To maintain optimal operating temperatures, the engine bay includes a dedicated cooling system. Key elements include the radiator, cooling fans, hoses, and expansion tanks.
Airflow management is just as important as component placement.
You must ensure that cooling pathways remain unobstructed while also accommodating other systems within the same confined space. Poor layout can lead to heat buildup, reducing the lifespan of nearby high-temperature automotive components.
Electrical systems
Electrical systems in the engine bay are responsible for controlling and monitoring vehicle functions. Wiring networks connect sensors and control units, allowing real-time adjustments to engine performance and diagnostics. These systems have to operate reliably in tough conditions. Heat, vibration, and electrical noise can all affect performance, so stable connections and well managed routing are essential.
Effective automotive cable management is critical in this area. Proper cable routing in engine bays helps prevent abrasion, interference, and heat damage. Solutions such as cable ties, cable clamps, and P clips are commonly used to secure wiring and maintain consistent routing paths, particularly in high-vibration zones.
Our experts explain more in A guide to automotive cable management.
Air and fuel systems
Air intake and fuel delivery systems control how air gets in and how fuel is supplied for combustion. If either is off, efficiency drops or the engine won’t run as intended. This involves air filters, intake ducts, fuel lines, injectors and throttle bodies, which need to operate reliably under different loads and conditions.
These systems need to be routed with care to avoid restriction, damage, or contamination. Poor routing can lead to flow issues or increased wear over time. In practice, lines and ducts are secured using automotive clips and fasteners to keep them in position and reduce the risk of movement, leaks, or disconnection during operation.
Environmental challenges in engine compartments
Components within the engine bay are exposed to environmental conditions that can impact performance, durability and even safety. Accounting for these factors is essential when specifying components, along with defining retention and routing strategies.
High temperatures
Combustion processes and surrounding systems routinely elevate temperatures within the engine bay. For example, hotspots form near exhaust components and turbochargers.
This thermal exposure affects both structural and electrical elements. High-temperature automotive components must be selected to maintain mechanical integrity and performance over time, while routing and securing methods must prevent heat-related degradation.
Vibration and mechanical stress
Continuous vibration from engine operation and road-induced movement places mechanical stress on all components. Over time, this can lead to loosening, fatigue or failure if not properly managed.
To mitigate these effects, use automotive clips and fasteners. Proper support and spacing are also critical to prevent wear caused by repeated movement or contact between parts.
Chemical exposure
Engine bays are regularly exposed to automotive fluids such as oil, coolant, fuel and cleaning agents. These substances can degrade materials, especially plastics and elastomers, if they’re not specifically designed for chemical resistance.
Choosing components that can withstand prolonged exposure is key to maintaining long-term reliability, especially in areas where leaks or spills may occur.
Dust, moisture, and debris
The build up of dust, water, and road debris can lead to abrasion, corrosion and contamination of sensitive systems.
Effective sealing, shielding, and routing strategies help minimise exposure to ingress. In particular, cable routing in engine bays, supported by solutions such as cable ties, cable clamps, and P clips, can reduce the risk of damage caused by environmental contact.
Components found in engine compartments
Below are examples of our components designed to support engine operation, system control, and overall vehicle performance.

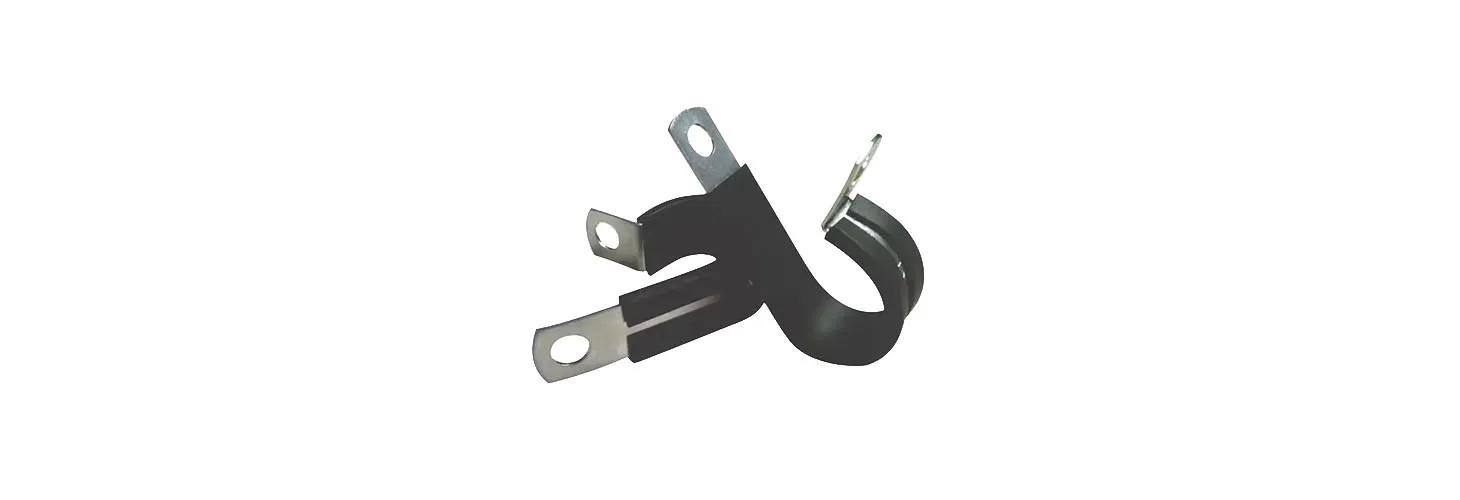

Steel P clamp with rubber cushion
Also called a P clip and made from cold-rolled steel with a zinc electroplated finish. Offers excellent resistance to oxidation. The integrated TPE lining provides electrical insulation and helps absorb vibration, making it well suited for long-life automotive and industrial applications.

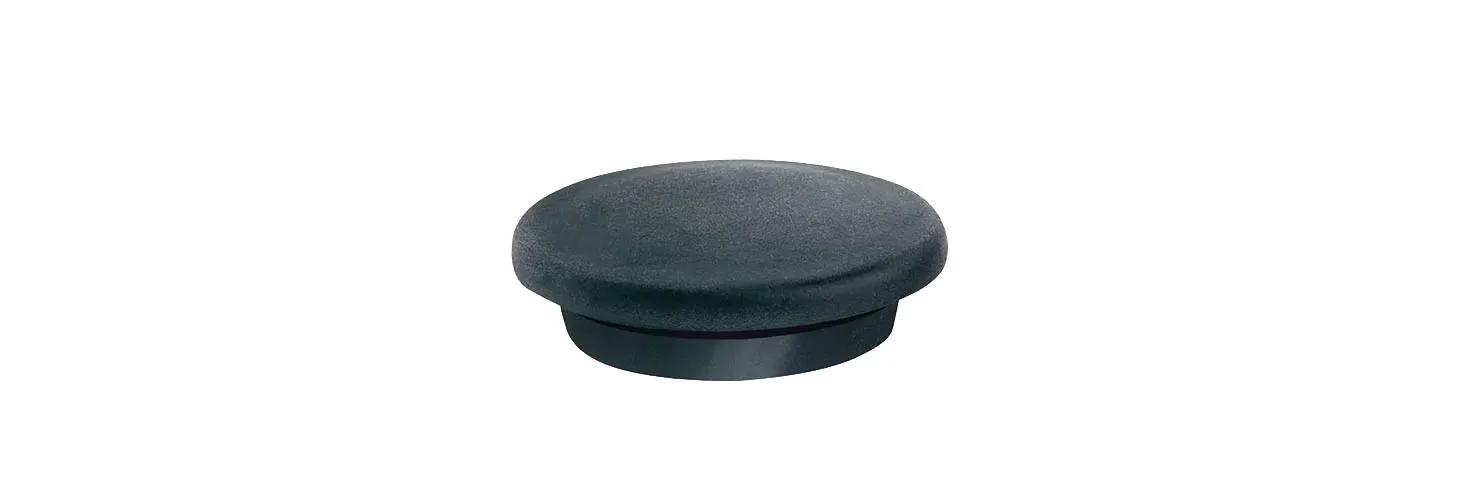

Sheet metal plugs
Essential components in automotive applications, used to seal or cover holes in metal panels. They help protect internal systems from dust, moisture, and debris. Commonly used as body plugs, they prevent contamination and safeguard internal surfaces while maintaining a clean, finished appearance. Suited to both production and service applications. Available in different materials for reliable performance under demanding engine conditions.

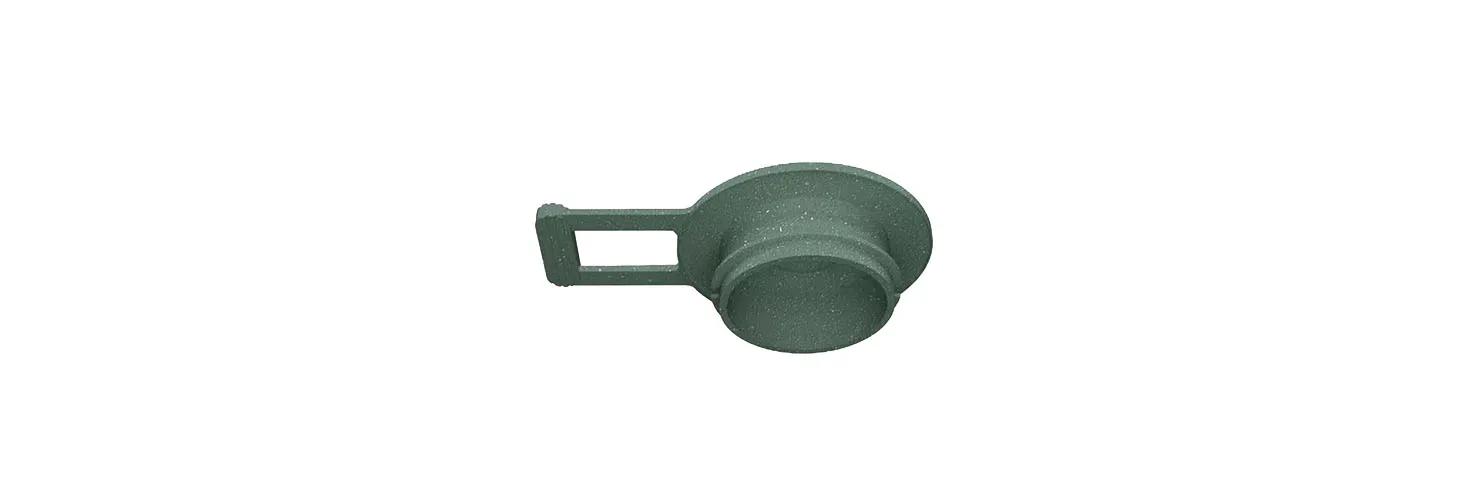

Hole plugs
Used to seal or close openings in panels. Hole plugs help prevent the ingress of dirt, moisture and debris, while protecting internal features such as threads and cavities. In automotive applications, they support engine protection by maintaining system integrity in harsh conditions. Hole plugs are durable, cost-effective, and easy to install or remove, making them suitable for both assembly and maintenance. A range of types—including tapered, snap-fit, flexible, and threaded plugs—are available to suit different needs, with materials suitable for high-temperature automotive components.

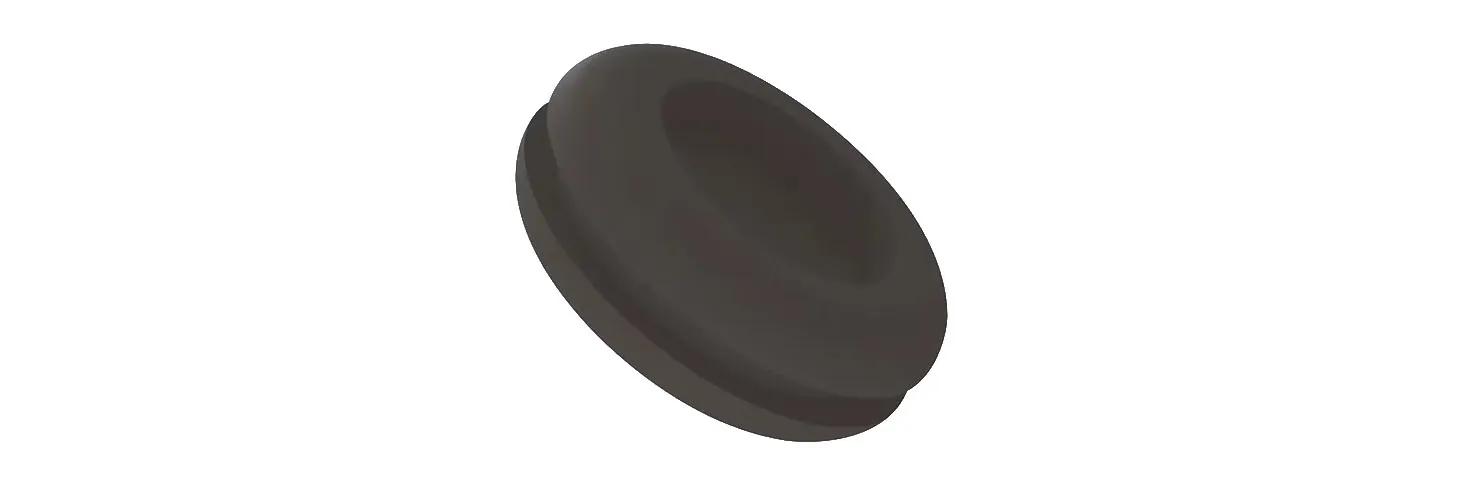

Cable grommets
Protects electrical cables that pass through panel holes, helping to prevent damage from sharp edges, vibration, and harsh environmental conditions. Also provides insulation and strain relief. By supporting effective automotive cable management and safe cable routing in engine bays, grommets help improve durability, reliability, and overall system performance.

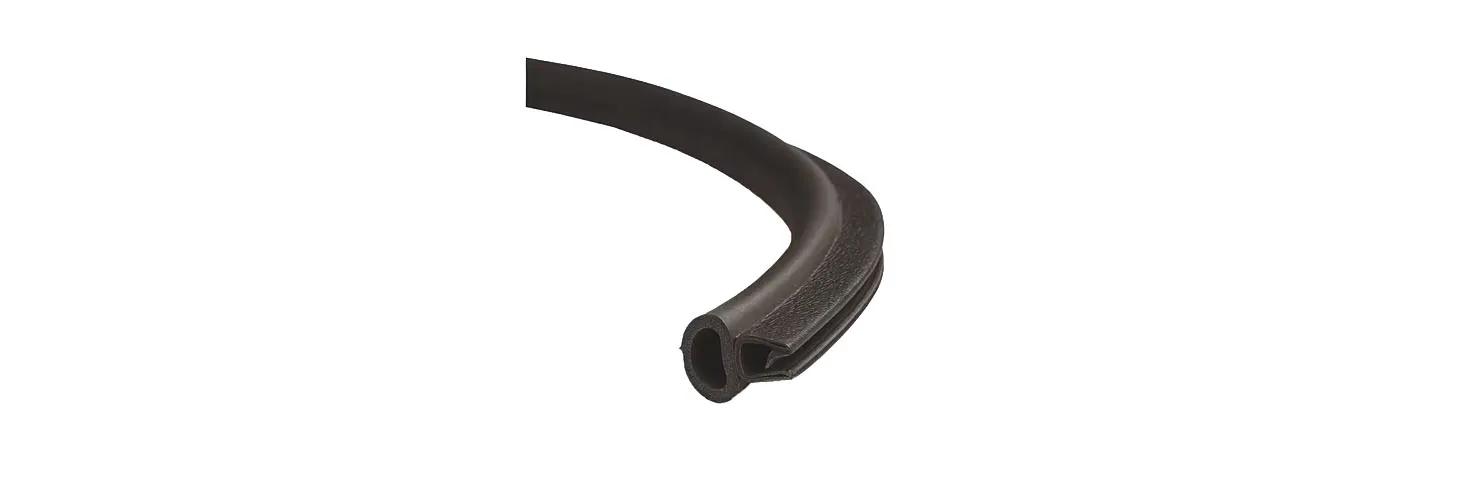

Weather strip edge trim & tape
Weather stripping gasket tape is a flexible sealing material, typically made from rubber, used to close gaps and prevent the entry of moisture, air, and contaminants. Sealing gaskets, on the other hand, are clip-on profiles designed to fit over edges—particularly on metal panels—providing protection against wear, vibration, chemicals, and environmental exposure while helping to maintain a secure and sealed finish.

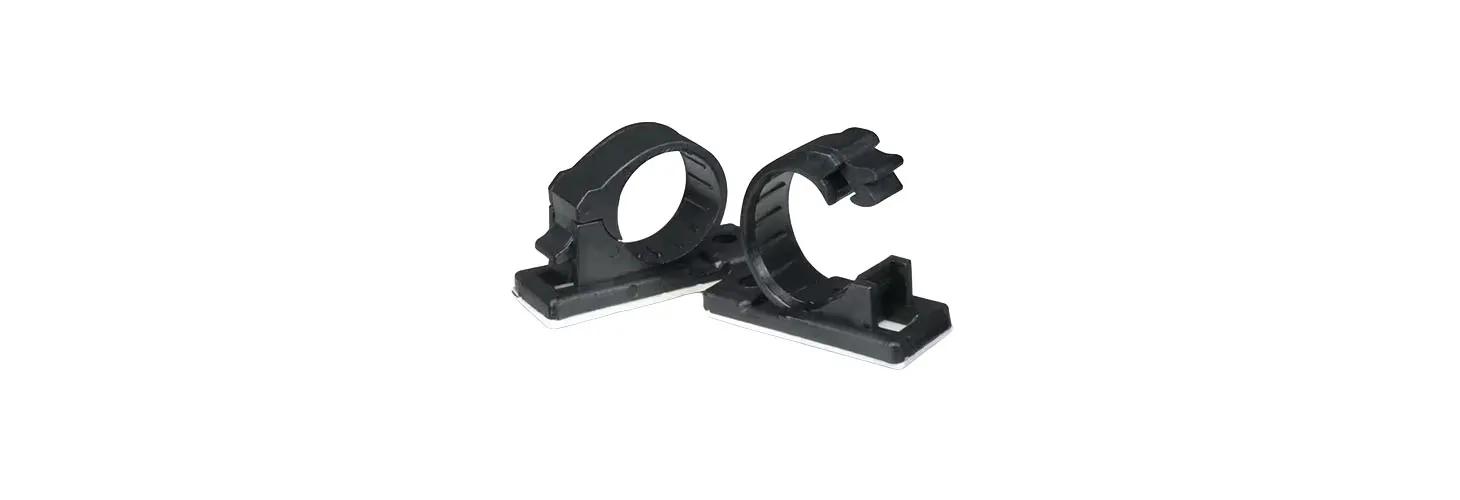

Cable clamps
Cable clamps are cable management fasteners used to secure and support wiring, helping to define safe and consistent routing paths from source to destination. By keeping cables organised and firmly in place, they reduce the risk of abrasion, vibration damage, and mechanical wear. Available in a range of materials, sizes, and mounting types, with options such as rubber-lined or anti-vibration designs offering enhanced protection in high-stress environments.

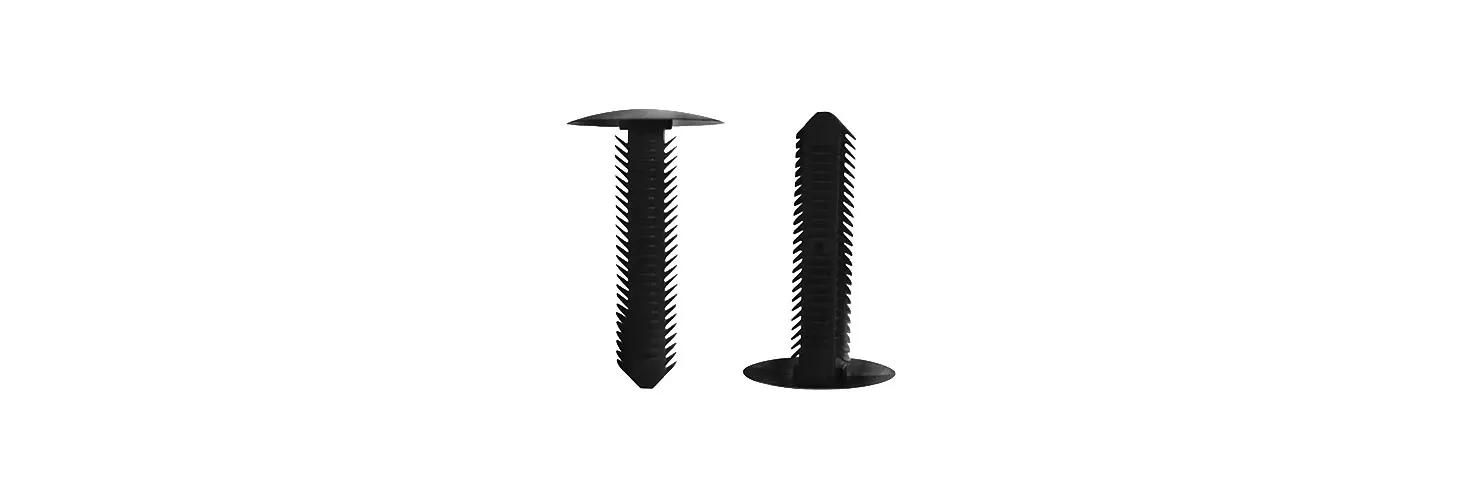

Push-in rivets – fir tree
Used to secure panels and lightweight components to provide reliable retention. The ribbed, angled shank easily inserts into pre-drilled holes. The flexible ribs compress, expanding to lock firmly in place. Variants such as spin clips offer a combination of push-in fixing with added screw functionality, while other designs allow for removal when needed, making them a versatile solution for assembly and maintenance. Secure, tool-free installation. Resists corrosion, oil, abrasion and most chemicals.

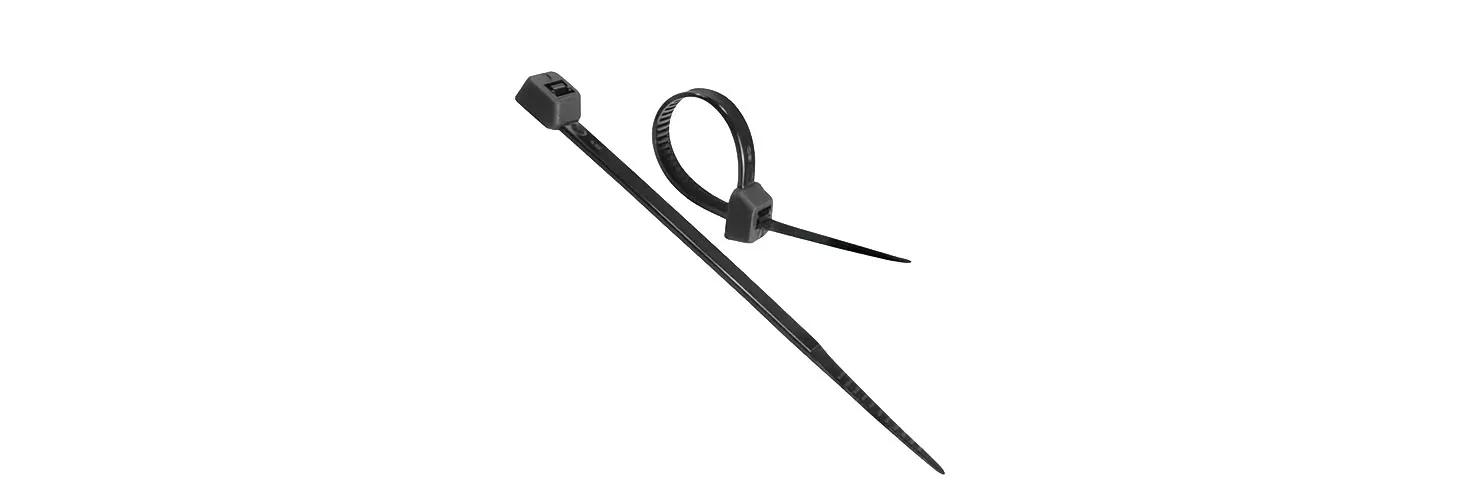

Cable ties
Cable ties bundle cables and wires together, keeping them organised, and functioning as a strap. Our range includes different types, from self-locking to heat-stabilised cable ties, making them ideal for automotive applications.

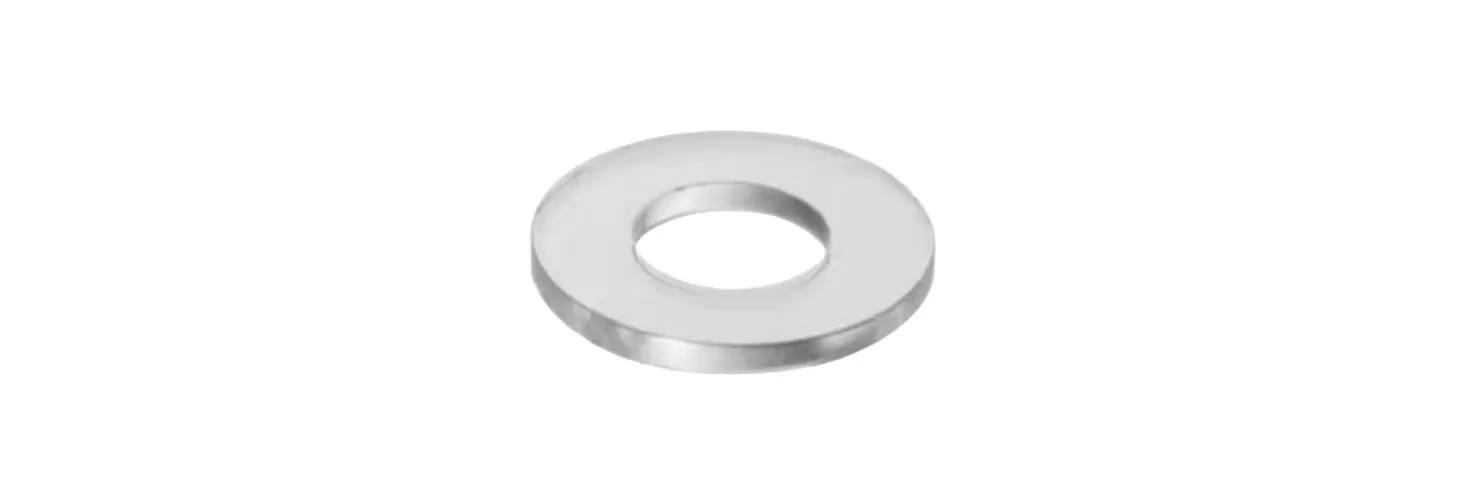

Nylon flat washers
Flat washers, or plain washers as they're also called, evenly distribute load, reduce friction during tightening, and help prevent damage to components. In automotive applications, they also provide insulation, spacing, and protection against moisture, abrasion, and chemicals. Available in a wide range of sizes and finishes. Resists corrosion.

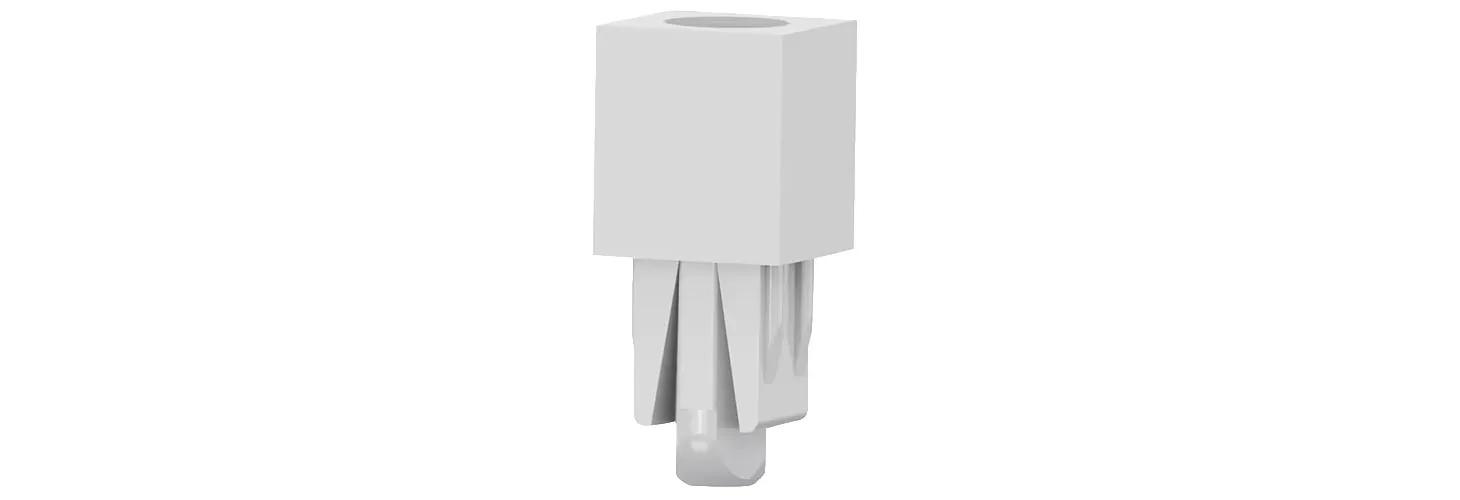

Screw grommets – natural, square hole
Screw grommets offer a fast and reliable method for securing panels or PCBs without the need for additional hardware. As this self-tapping screw is driven in, the lower legs expand outward to create a firm hold. Designed for use in square holes, they also prevent rotation during installation, ensuring a secure and stable fit.

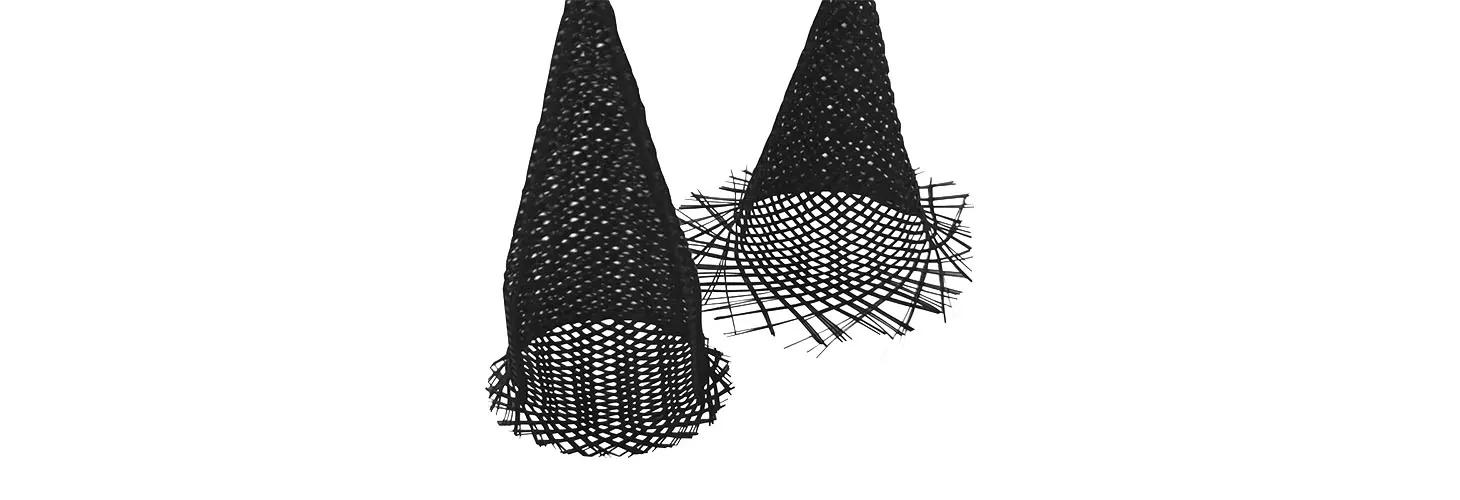

Cable sleeves – braided
Braided sleeving is well suited to automotive use, particularly in the engine bay, as it protects cable bundles from abrasion, heat, chemicals, and debris. It also supports effective automotive cable management by keeping wiring organised and enabling flexible cable routing in engine bays.
What if standard components don’t work for your application? Our experts have put together this helpful guide: From concept to creation: Understanding custom component solutions.
Materials suitable for engine bay components
Components used within the engine bay must withstand extreme conditions while maintaining performance and reliability over time. The materials you choose should offer strong chemical resistance to withstand exposure to oils, fuels, and other automotive fluids, plus flame-retardant properties for safety. Many components are chosen in line with industry standards, such as UL94 for flammability.
|
Material |
Key characteristics |
Temp. resistance (Continuous / Peak) |
Chemical resistance |
Typical automotive uses |
|
Nylon 6/6 |
High tensile strength, wear resistant, lightweight |
248°F / 302°F |
Resists oils, fuels & solvents |
Cable ties, clips, fasteners |
|
PEEK |
Excellent mechanical strength, high thermal stability |
500°F / 572°F |
Excellent resistance to hydrocarbons & aggressive chemicals |
High temperature components, washers, insulators |
|
PP |
Lightweight, fatigue resistant, low density |
212°F / 230°F |
Resists moisture, acids & alkalis |
Covers, clips, non-structural parts |
|
TPE |
Flexible, elastic, vibration damping |
248°F / varies |
Moderate resistance to weathering & chemicals |
Seals, gaskets, cushioned clamps |
|
EPDM |
Excellent weather, ozone, & UV resistance |
302°F / 356°F |
Excellent resistance to water, steam & glycol-based fluids |
Seals, gaskets, hoses |
|
PVC |
Good insulation, flexible, abrasion resistant |
221°F / 248°F |
Resistant to moisture, oils, diluted acids & alkalis |
Cable insulation, protective coverings |
Best practices
Minimize risks and make sure systems perform consistently by applying best practices.
1. Optimize cable routing
Poor routing or incorrect fastening can lead to insulation wear, short circuits, or premature component failure. Route cables away from high- heat sources, such as exhaust components. Also, keep them clear of moving parts that may cause wear.
2. Use the right cable management solutions
Reliable automotive cable management depends on using the right retention methods. Components such as cable ties, cable clamps, and P clips secure wiring at regular intervals, preventing movement and reducing vibration-related damage. Avoid over-tightening, as this can damage insulation and compromise performance.
3. Select materials for the environment
Choose materials based on the environmental challenges present. Using high temperature automotive components and chemically resistant materials helps ensure long-term durability, particularly in areas exposed to heat, fluids, and contaminants.
4. Account for vibration and mechanical stress
The engine bay experiences constant vibration. Using the right automotive clips and fasteners helps keep everything in place. In areas exposed to higher levels of movement, vibration-dampening options such as cushioned P clips can help reduce strain on cables and connections.
5. Design for protection and longevity
Most issues in the engine bay come down to wear over time. Factor in engine protection from the very start. For example, degradation in the engine bay is typically driven by abrasion at contact points. Edges cut into cables, debris gets in, and parts rub where they shouldn’t. Adding grommets, sleeving, or sealing in the appropriate places helps avoid that.
6. Consider serviceability
Service access matters once the vehicle is in use. If routing is unclear or fixings are hard to reach, even simple tasks take longer. Keeping layouts accessible and using fixings that can be removed and reused makes inspection and replacement more straightforward, especially in confined engine bay spaces.
Conclusion and expert resources
Engine bay design isn’t just about selecting parts, but how everything holds up once the vehicle is in use. Heat, vibration, and exposure all act on components at the same time, so decisions around routing, material choice, and fastening tend to show up later in reliability.
That’s where smaller components start to matter. Cable management, sealing, and retention all play a role in preventing wear, movement, and contamination. If those basics aren’t handled properly, issues build gradually rather than appearing all at once.
For a broad look at how small components affect manufacturing and supply chain reliability, see Small Parts, Big Impact: Inside the Automotive Supply Chain.
