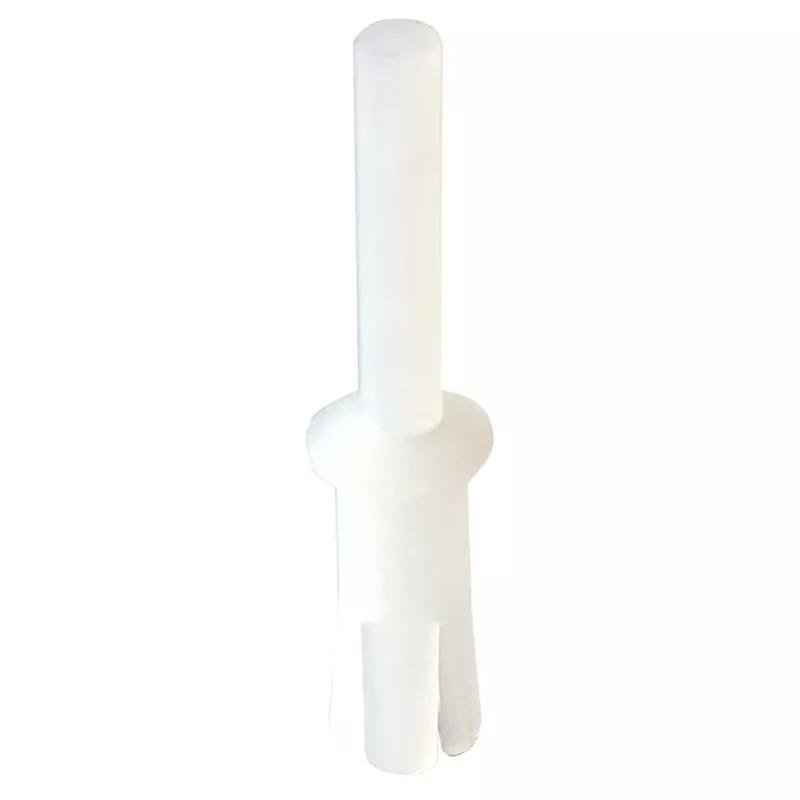

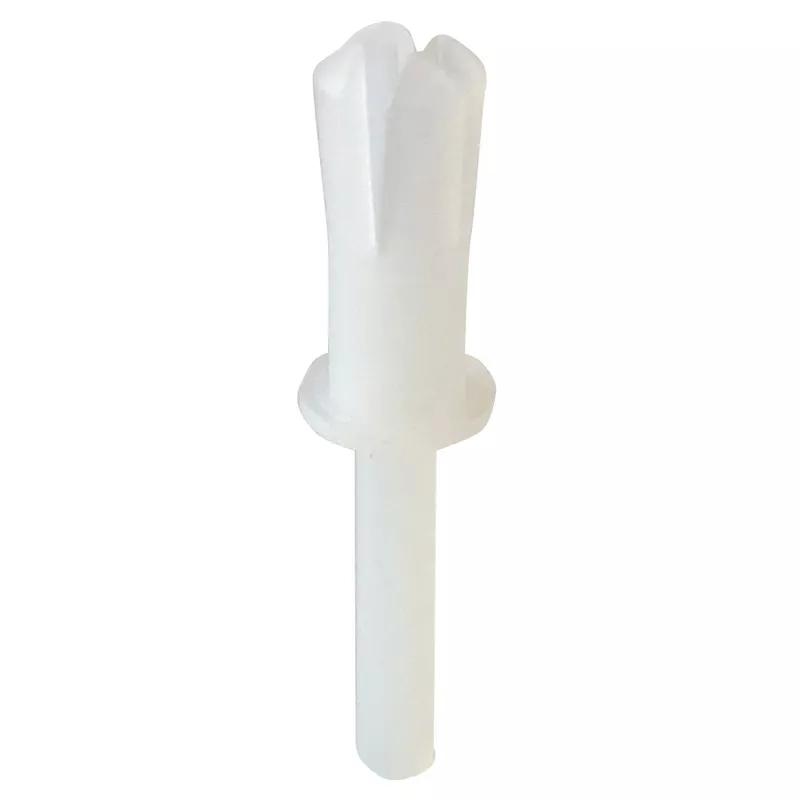

Push-In Rivet 5.7 mm 3.2 mm 7.9 mm Nylon Natural
Load Spreading Rivets provide a fast, economical and permanent fastening solution. They are installed by placing the rivet body into a panel hole and pushing the pre-assembled plunger downwards into the assembly. The rivet expands in the application, providing a firm and snug fit. These rivets provide solid connections by means of blind side fixing.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 0,8738 |
| 5000 - 19999 | R 0,7943 |
| 20000 + | R 0,7221 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 11.9 mm |
|---|---|
| Compatible Hole Diameter | 5.7 mm |
| Head Diameter | 9.6 mm |
| Head Height | 2 mm |
| Rivet Type | Spreading |
| Rivet Head Shape | Truss |
| Rivet Fitting Style | Push-In |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | 85 °C |
