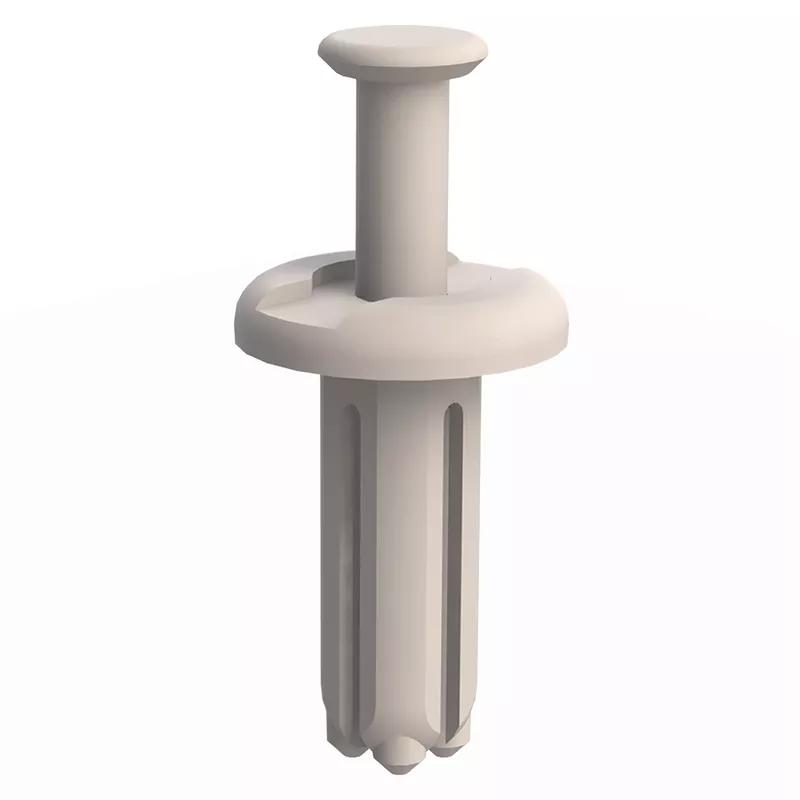

Removable Push-In Rivet - Panel Thickness Range 3.2 mm | 0.126 in; Natural; Nylon

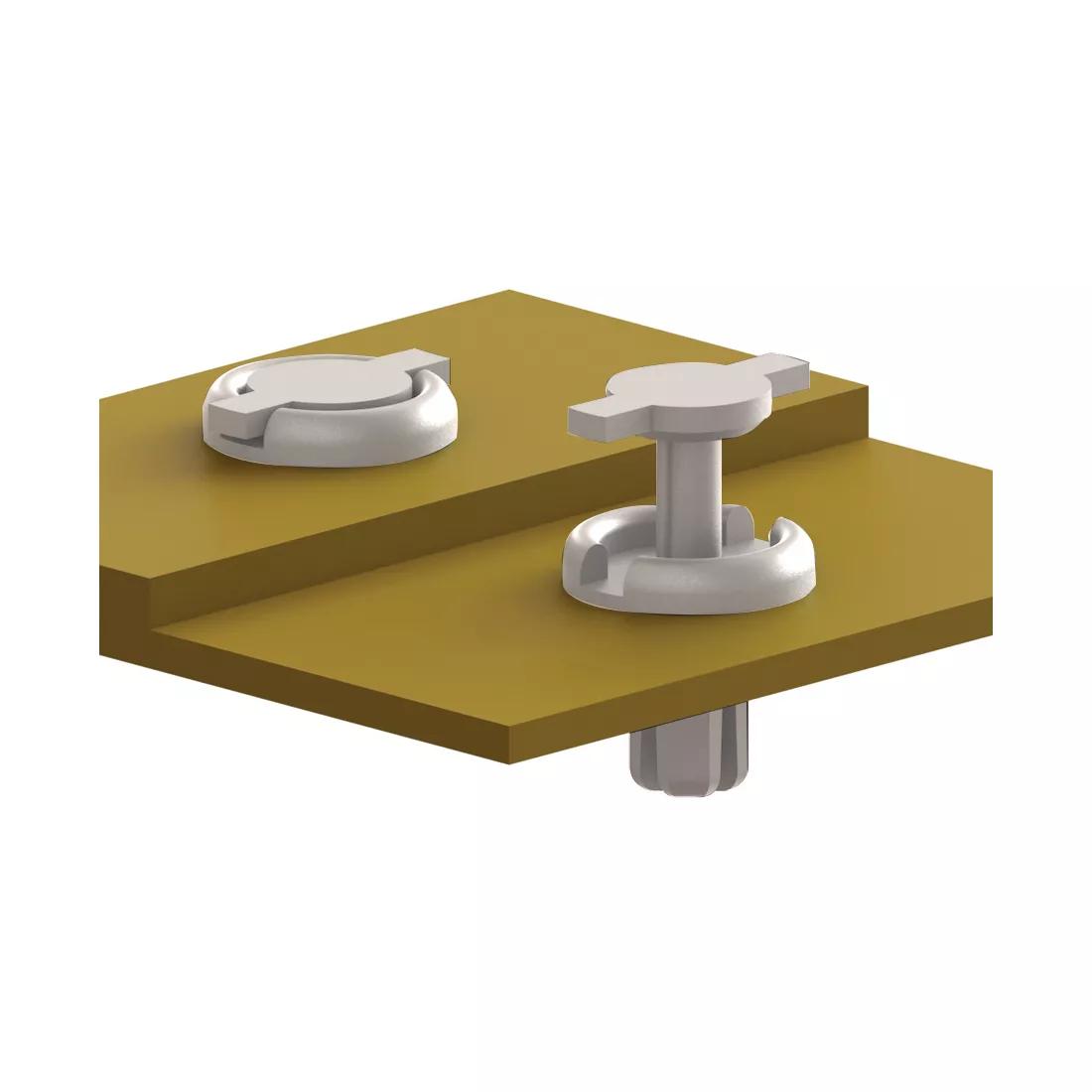

Can be used in a round hole. Can be easily removed by retracting the pin, and then the body. Part comes fully assembled.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 4999 | R 9,9853 |
| 5000 + | R 9,4926 |
Useful Information
Documents
Specifications
Imperial
Metric
| Mounting Hole Shape | Round |
|---|---|
| Hole Diameter A | 4.8 mm |
| Panel Thickness Range | 3.2 mm |
| Anchor Length | 12.7 mm |
| Head Diameter | 9.5 mm |
| Head Height | 1.8 mm |
| Pre-Assembled Rivet | Yes |
| Colour | Natural |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
