5 2.0 mm 44.0 mm Steel
This Gas Spring Mounting Bracket is designed to provide a stable attachment as well as optional functionality for gas springs. The raised and U plated fitting is suitable for receiving ball joints. It is screwed in and made of carbon steel with Zinc.
Loading...
| Quantity | Unit price |
|---|---|
| 20 - 39 | R 165,5829 |
| 40 - 139 | R 129,5413 |
| 140 - 259 | R 116,5646 |
| 260 + | R 97,1348 |
Useful Information
Documents
Specifications
Imperial
Metric

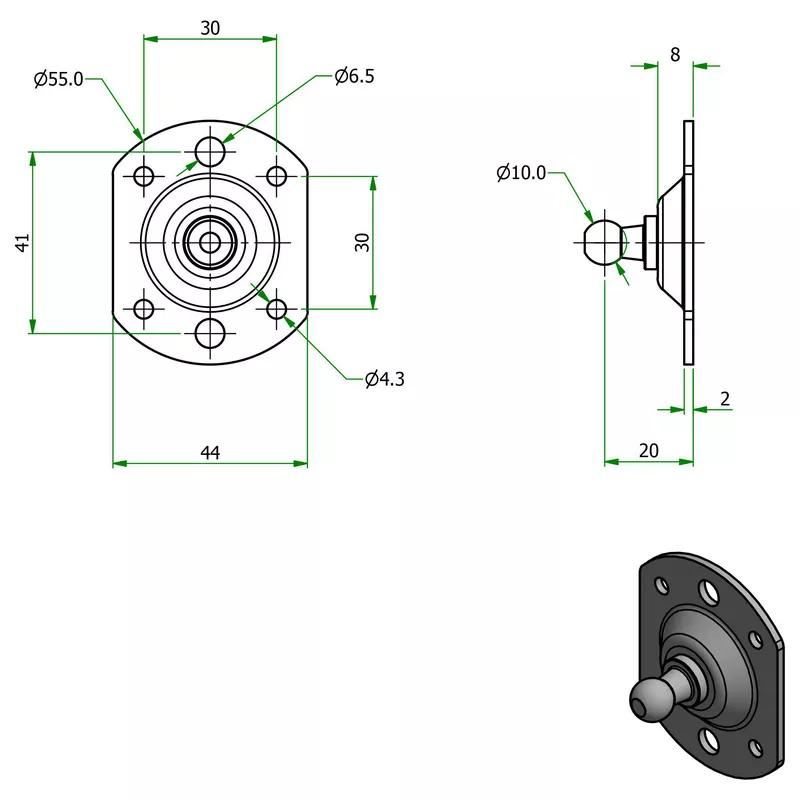

| Type | 5 |
|---|---|
| Fitting Type | Ball Joint |
| Full Material | Carbon Steel |
| Ball End Diameter | 10.0 mm |
| Overall Length | 44.0 mm |
| Hole Diameter A | 6.5 mm |
| Hole Diameter B | 4.3 mm |
| Plate Thickness | 2.0 mm |
| Distance Between Fixing Holes | 30.0 mm |
| Longest Distance Between Fixing Holes | 41.0 mm |
| Screw Hole Diameter | 6.5 mm |
| Commodity Code | 7326909890 |
