Fixing Plate 25.0 mm M8 Steel
This Gas Spring Mounting Bracket is designed to provide a stable attachment as well as optional functionality for gas springs. The flat plated fitting is suitable for receiving ball joints. It is screwed in with a M8 thread size and made of carbon steel with Zinc.
Loading...
| Quantity | Unit price |
|---|---|
| 20 - 39 | R 176,6152 |
| 40 - 139 | R 138,1783 |
| 140 - 259 | R 124,3563 |
| 260 + | R 103,6302 |
Useful Information
Documents
Specifications
Imperial
Metric

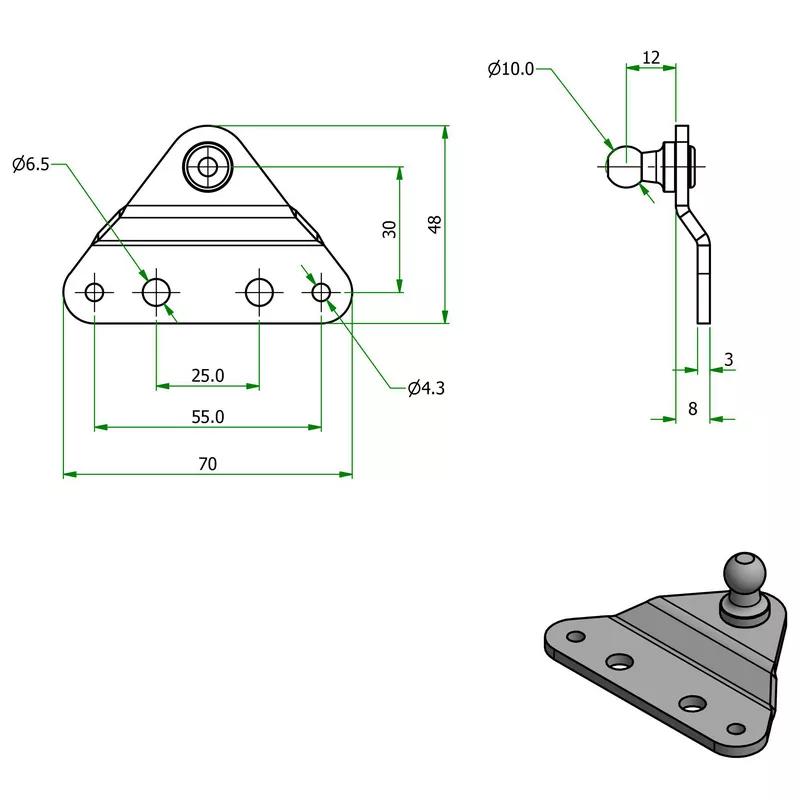

| Type | 3 |
|---|---|
| Fitting Type | Ball Joint |
| Full Material | Carbon Steel |
| Ball End Diameter | 10.0 mm |
| Overall Length | 70.0 mm |
| Overall Width | 48.0 mm |
| Hole Diameter A | 6.5 mm |
| Hole Diameter B | 4.3 mm |
| Plate Thickness | 3.0 mm |
| Distance Between Fixing Holes | 25.0 mm |
| Longest Distance Between Fixing Holes | 55.0 mm |
| Thread Size | M8 |
| Screw Hole Diameter | 6.5 mm |
| Commodity Code | 7326909890 |
