Screw Support - 1.6 mm | 0.062 in ; 22.2 mm | 0.875 in ; 3.9 mm | 0.153 in ; #6

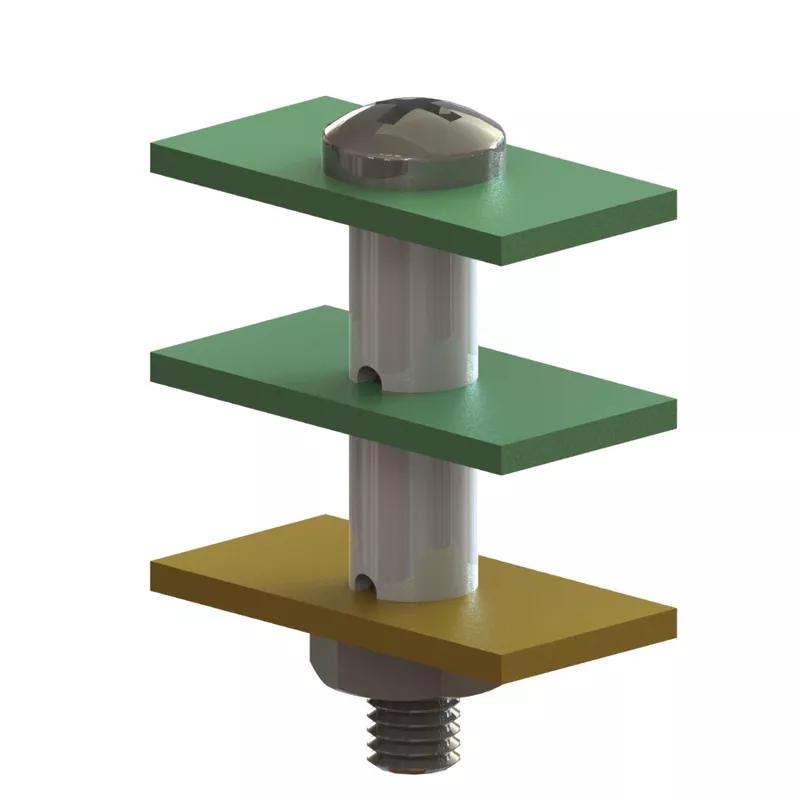

This self retaining stackable spacer is perfect for supporting, insulating and hiding screws. This item is manufactured from material rated UL94 V-2
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.3048 |
| 10000 - 24999 | $0.2771 |
| 25000 + | $0.2541 |
Useful Information
Specifications
Imperial
Metric
| Body Diameter | 0.311 in |
|---|---|
| Hole Diameter A | 0.232 in |
| Inside Diameter | 0.154 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.063 in |
| Minimum Operating Temperature | -40 °F |
| Spacer Length | 0.874 in |
| Color | Natural |
| Compatible Thread Sizes (All) | #6,M3 |
| Full Material | Polyamide 6.6 |
| Hole A Fix Type | Snap Lock Fix |
| Hole B Fix Type | Hole Fix |
| Material | PA |
| Material Flammability Standard | UL94 V-2 |
| Style | Stacking |
