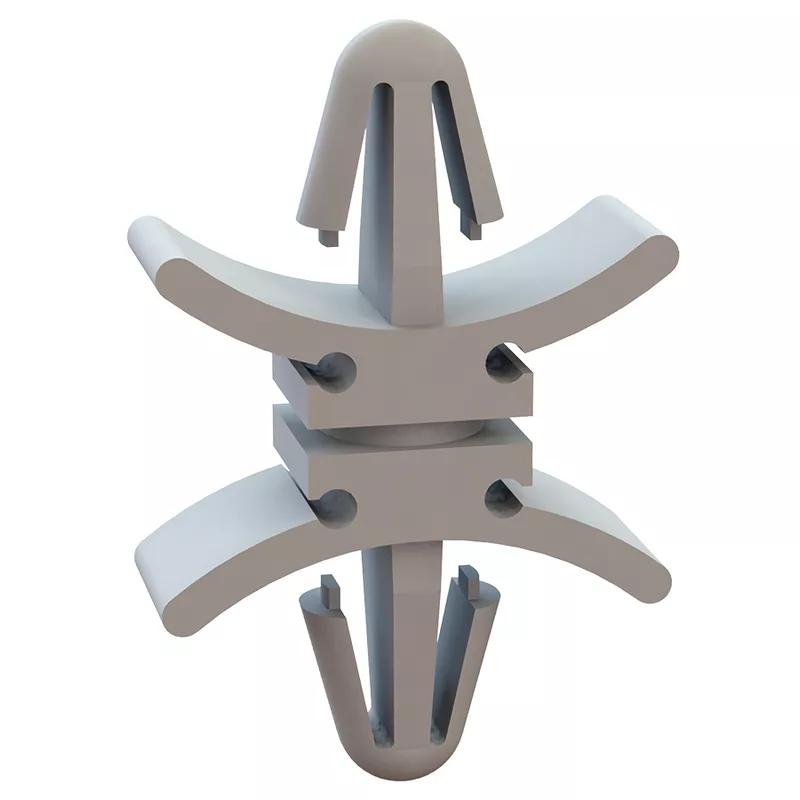

PCB Support - Locking Arrowhead Fix ; Locking Arrowhead Fix ; Natural ; PA ; 7.5 mm | 0.295 in
This solid body locking circuit board support provides the necessary safety to your application and is a tool-free installation component. The winged base gives extra stability. This item is manufactured with arterial rated UL94-V2
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.1256 |
| 10000 - 24999 | $0.113 |
| 25000 + | $0.1017 |
Useful Information
Documents
Specifications
Imperial
Metric
| Hole Diameter A | 0.189 in |
|---|---|
| Hole Diameter B | 0.189 in |
| Locking Head Height A | 0.22 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.079 in |
| Maximum Panel Thickness B | 0.079 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness A | 0.031 in |
| Minimum Panel Thickness B | 0.031 in |
| Spacer Length | 0.421 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Hole A Fix Type | Locking Arrowhead Fix |
| Hole B Fix Type | Locking Arrowhead Fix |
| Material | PA |
