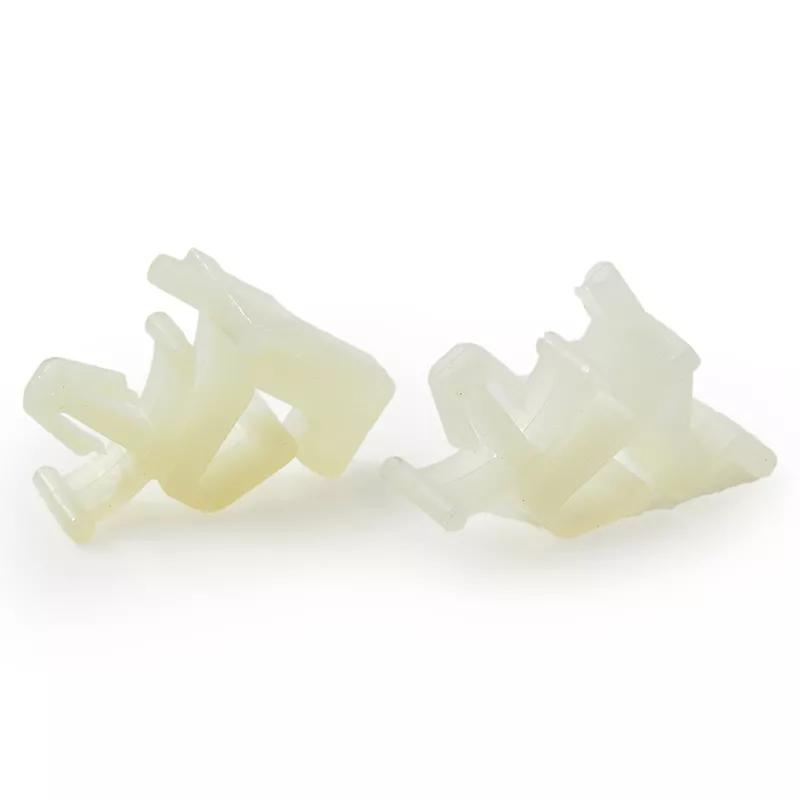

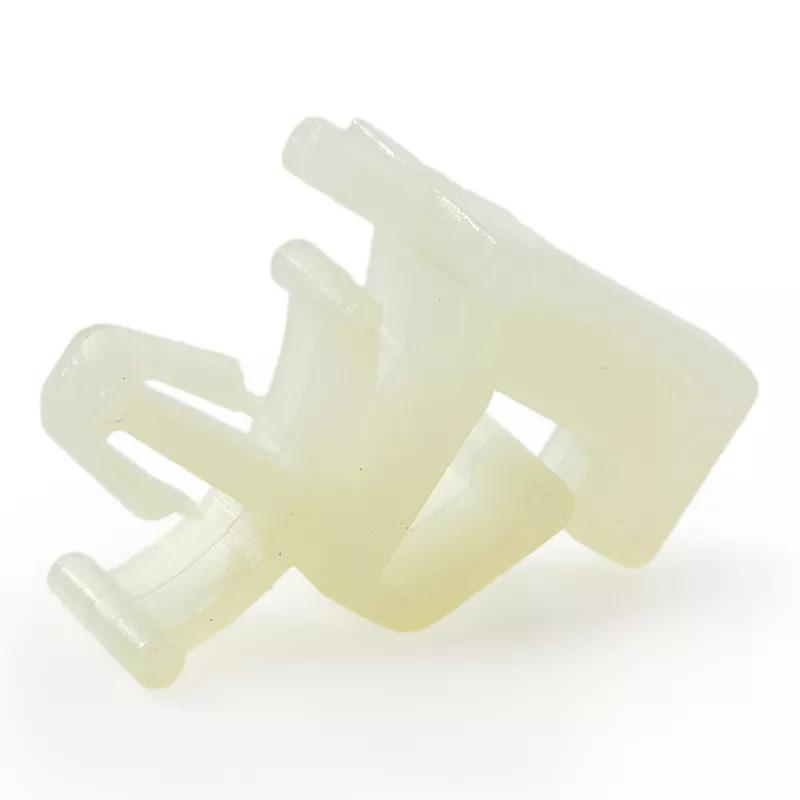

Edge Locking Support - ; 22 mm | .866 in
Universal Board Mount is suitable for mounting different sizes of circuit boards and is supplied in natural nylon 6/6 RMS-01.
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.3492 |
| 10000 - 24999 | $0.3174 |
| 25000 + | $0.2911 |
Useful Information
Specifications
Imperial
Metric

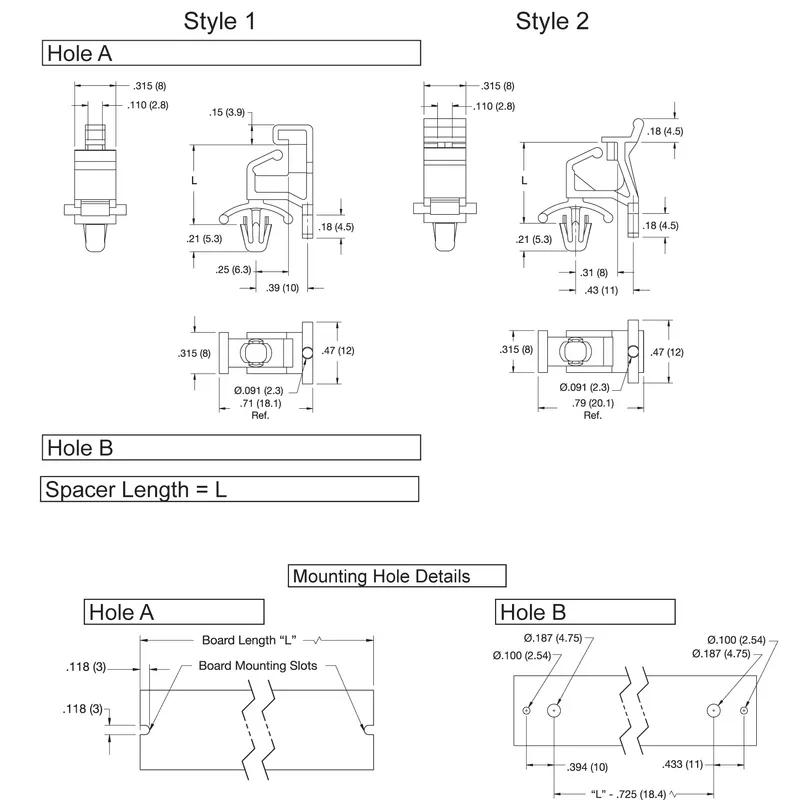

| Locking Head Height A | 0.180 in |
|---|---|
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.090 in |
| Maximum Panel Thickness B | .09 in |
| Minimum Operating Temperature | -40 °F |
| Minimum Panel Thickness B | 0.02 in |
| Operating Temperature Range | -40 - 185 °F |
| Panel Thickness A Range | 0.062 - 0.090 in |
| Panel Thickness B Range | 0.02 - .09 in |
| Spacer Length | .866 in |
| Colour | Natural |
| Hole A Fix Type | Unlocking |
| Hole B Fix Type | Snap Lock |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
