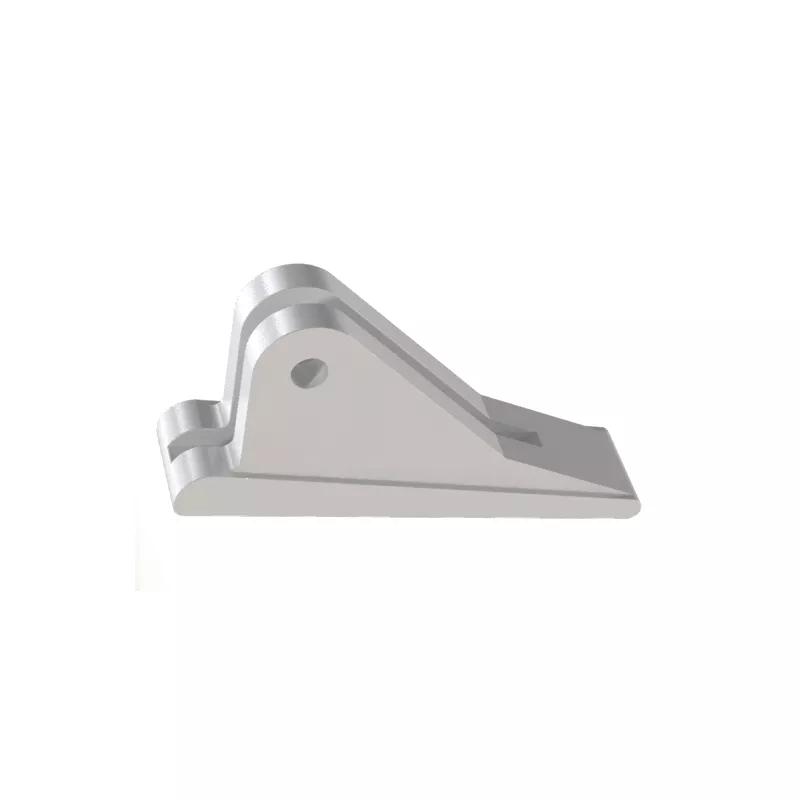

Circuit Board Ejector - 6 ; White ; Panel Thickness 1.6 mm | 0.062 in ; Outside Diameter 7.4 mm | 0.291 in
This PCB extractor is mounted on the board with installation pin RRP-250. It locks the board in when installed and helps to remove the board when pulling on the extractor.
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $1.0188 |
| 10000 - 24999 | $0.9262 |
| 25000 + | $0.849 |
Useful Information
Documents
Specifications
Imperial
Metric
| Maximum Operating Temperature | 194 °F |
|---|---|
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 194 °F |
| Overall Width | 0.291 in |
| Panel Thickness | 0.063 in |
| Additional Hardware Included | Roll Pin |
| Color | White |
| Full Material | Nylon 6/6 |
| Material Flammability Standard | UL94 V-2 |
| Package Quantity | 500 |
| Style | 6 |
