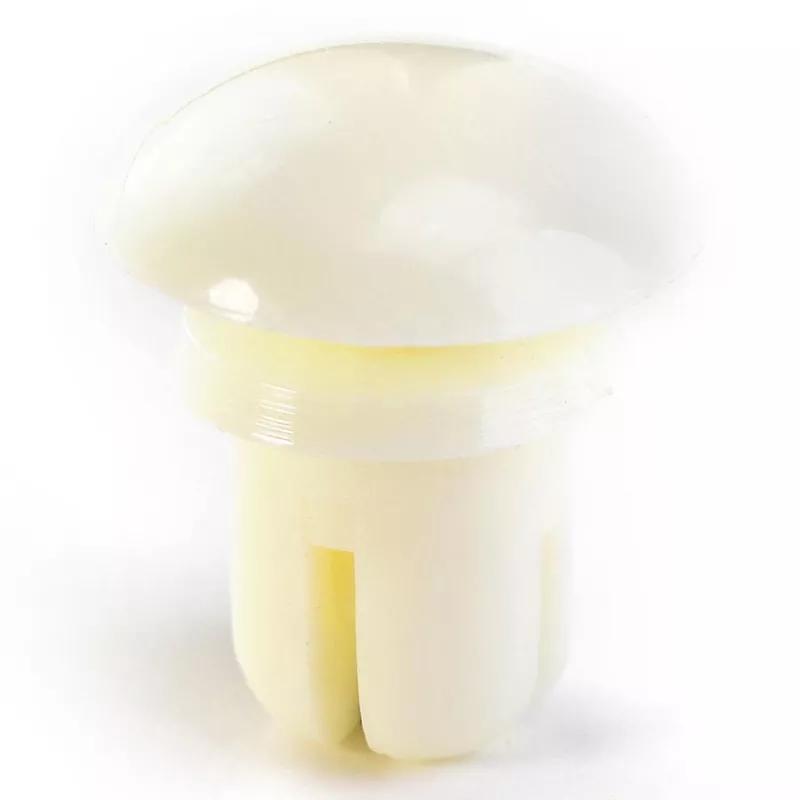

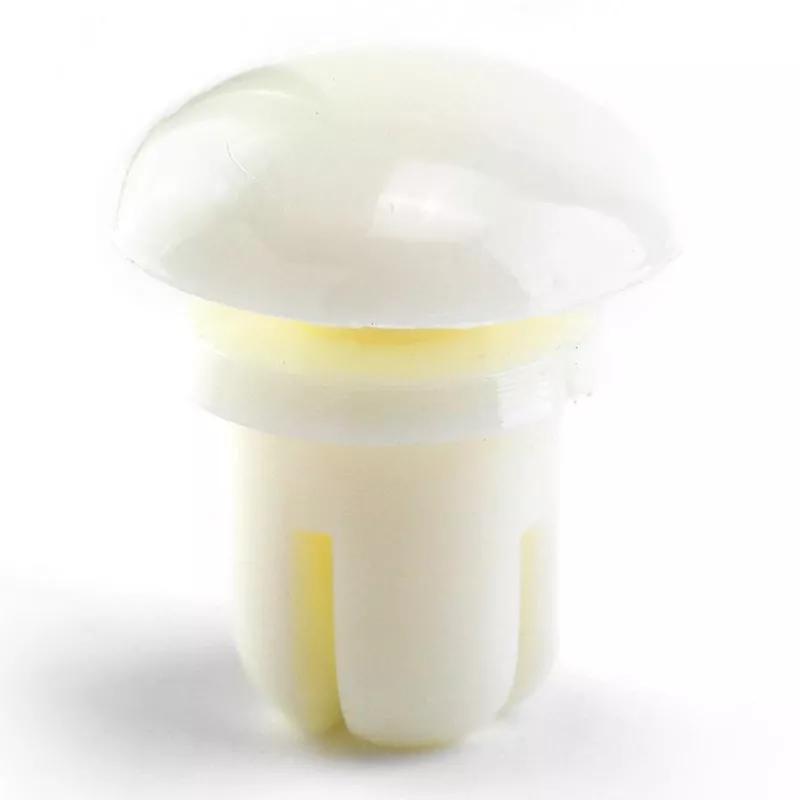

Snap Rivet - Compatible Hole Diameter Range 3.1 - 3.2 mm | 0.122 - 0.126 in; White;Nylon
Snap Rivets are a quick and easy fastener solution that can be installed without tools! Fast and economical, they have specially designed legs that expand and firmly lock the component parts permanently in place. They fit with a simple push, and have a tidy and smooth finish. Ideal for panel fastening and server rack applications. They provide a solid connections by means of blind fixing.
Loading...
| Quantity | Unit price |
|---|---|
| 1000 - 9999 | $0.0858 |
| 10000 - 39999 | $0.049 |
| 40000 + | $0.0466 |
Useful Information
Documents
Specifications
Imperial
Metric
| Anchor Length | 4.5 mm |
|---|---|
| Pin Length | 6.1 mm |
| Pin Head Diameter | 6.4 mm |
| Pin Head Height | 1.6 mm |
| Head Diameter | 6.4 mm |
| Head Height | 1.6 mm |
| Compatible Hole Diameter Range | 3.1 - 3.2 mm |
| Compatible Panel Thickness Range | 2.0 - 3.0 mm |
| Extraction Force | 8.0 kg |
| Colour | White |
| Full Material | Nylon 6/6 |
| Rivet Type | Snap Rivet |
| Rivet Head Shape | Mushroom |
| Rivet Fitting Style | Push-In |
| Material Flammability Standard | UL94 V-0 |
