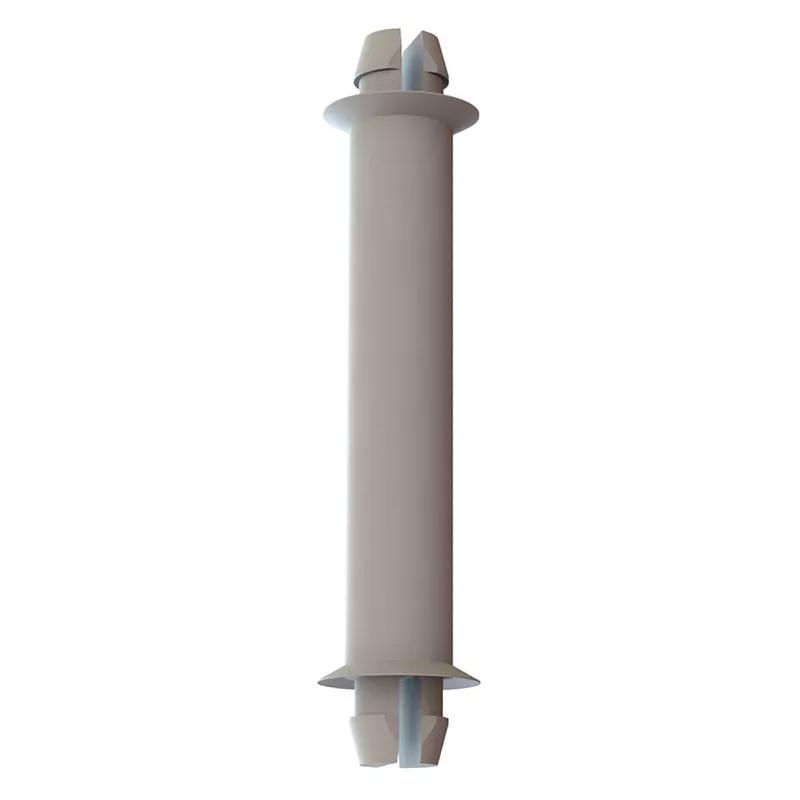

PCB Support - ; ; Natural ; Nylon ; 25.4 mm | 1.000 in
These Locking Two Prong Cupped/Locking Two Prong Cupped PCB Supports mount into Locking Two Prong and Locking Two Prong holes. The spacer length is 25.4 mm | 1.000 in and they are made of .
Loading...
| Quantity | Unit price |
|---|---|
| 500 - 9999 | $0.1392 |
| 10000 - 24999 | $0.1253 |
| 25000 + | $0.1127 |
Useful Information
Documents
Specifications
Imperial
Metric
| Body Diameter | 0.187 in |
|---|---|
| Hole Diameter A | 0.156 in |
| Hole Diameter B | 0.156 in |
| Maximum Operating Temperature | 185 °F |
| Maximum Panel Thickness A | 0.062 in |
| Maximum Panel Thickness B | 0.062 in |
| Minimum Operating Temperature | -40 °F |
| Operating Temperature Range | -40 - 185 °F |
| Panel Thickness A Range | 0.062 in |
| Panel Thickness B Range | 0.062 in |
| Spacer Length | 1.000 in |
| Color | Natural |
| Full Material | Nylon 6/6 |
| Material | Nylon |
| Material Flammability Standard | UL94 V-2 |
